5945-01-012-4049
Electrical Solenoid
5945010124049 010124049 18-C-120J60HZ 18-C-120V-60HZ 144292 651210F99157-01
An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR. View more Electrical Solenoid
January 2023
22
Marketplace 5945-01-012-4049
Request a Quotation from participating marketplace vendors
Related Documents 5945-01-012-4049 3+ Documents (More...)
RQST NE Updated Every Day 5945-01-012-4049 RQST Updated Every Day 5945-01-012-4049 RQST NE Related
Documents 5945-01-012-4049 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945
Updated Every Day 4820-14-427-7282 RQST NE Related https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945-01-012-4049
Electrical Solenoid 5945010124049 010124049 Account Upgrade 5945-01-012-4049Electrical Solenoid5945010124049
Electrical Solenoid 5945010124049 010124049 5945-01-012-4049Electrical Solenoid5945010124049 https
Navy (DN)NAConsolidated With 5945-01-012-4049Defense Logistics Agency (DS)IAConsolidated With 5945-01-012-4049
Restrictions 5945-01-012-4049
5945-01-012-4049 is a Electrical Solenoid that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-01-012-4049
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-01-012-4049
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5945-01-012-4049
- Part Number
- Manufacturer
- Status
- 18-C-120V-60HZ
- Manufacturer
- 73949 - Guardian Electric Manufacturing Co (Active)
- Primary Buy
- Primary Buy
- 144292
- 21877 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 18-C-120J60HZ
- 73949 - Guardian Electric Manufacturing Co (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 651210F99157-01
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 651210F99157-01
- 1PQF4 - Cae Usa Inc. (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5945-01-012-4049
- Characteristic
- Specifications
- FIIG
- Specifications
- A134A0
- Duty Type [APNP]
- Continuous
- Electric Power Rating [ARQE]
- 19.00 Watts Nominal
- Actuator Stroke Type [CNXT]
- Pull
- Body Height [ADAU]
- 2.094 Inches Maximum
- Body Length [ADAQ]
- 2.500 Inches Nominal
- Body Width [ADAT]
- 1.792 Inches Minimum And 1.822 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 2.000 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 1.355 Inches Minimum And 1.385 Inches Maximum
- Frequency In Hertz [AJSS]
- 60.0 Nominal

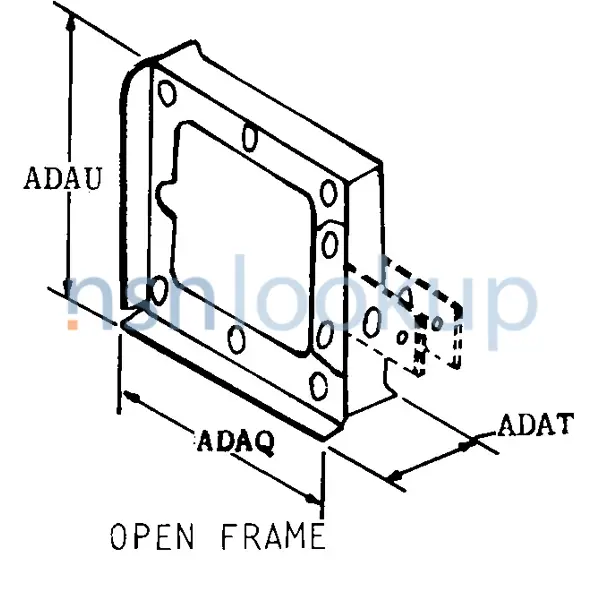

- Body Style [AAQL]
- Open Frame
- Mounting Facility Pattern [CQYJ]
- Four Position Rectangular
- Mounting Facility Type And Quantity [AXHR]
- 4 Slot
- Mounting Slot Width [ABTD]
- 0.208 Inches Nominal
- Inclosure Type [AKNA]
- Fully Inclosed
- Linear Force Delivered [CNXW]
- 15.00 Pounds
- Magnetic Coil Quantity [APAF]
- 1
- Power Takeoff Connection Type [CNXX]
- U-Shaped Bracket
- Voltage Rating In Volts [ASXH]
- 120.0 Ac Maximum
- Terminal Location [APXH]
- One Side
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
