5945-00-636-8779

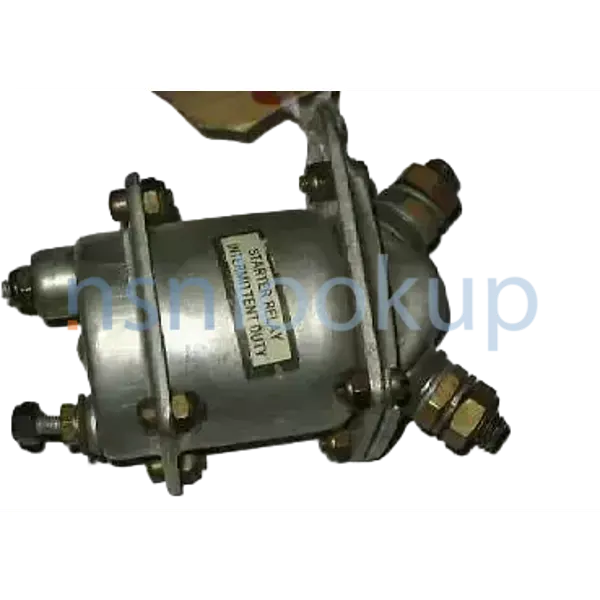

Electromagnetic Relay
5945006368779 006368779 6183391 1075543 2980B WSE-4101A C80-1 539A 2920006368779
A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING. View more Electromagnetic Relay
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
45
45
NATO Data Quality
Marketplace 5945-00-636-8779
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5945-00-636-8779 RQST NE
Updated Every Day 5945-00-636-8779 RQST
Updated Every Day 5945-00-636-8779 RQST NE
Related Documents 5945-00-636-8779 5+ Documents (More...)
Electromagnetic Relay 5945006368779 006368779 WSE-4101A RELAY,ELECTROMAGNETIC 4 EA NS Request Quotation
WSE-4101A RELAY,ELECTROMAGNETIC 1 EA NS Request Quotation Subscribe to View Vendor Details... 5945-00
WSE-4101A RELAY,ELECTROMAGNETIC 3 EA NS Request Quotation 6183391 RELAY,ELECTROMAGNETIC 1 EA NS Request
WSE-4101A RELAY,ELECTROMAGNETIC 1 EA NS Request Quotation Subscribe to View Vendor Details... 5945-00
WSE-4101A RELAY,ELECTROMAGNETIC 3 EA NS Request Quotation 6183391 RELAY,ELECTROMAGNETIC 1 EA NS Request
Active) NATO Reference RNCC 6 RNVC 9 DAC 9 C801 https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945-00-636-8779
Electromagnetic Relay 5945006368779 006368779 5945-00-636-8779 5945006368779 006368779 is a relay
Electromagnetic Relay 5945006368779 006368779 5945-00-636-8779 5945006368779 006368779 is a relay
1 07482 612A241P2 5315-00-722-7625 38 8 62226 61432 135 9 56442 616G4 5310-00-350-2655 57 7 19207 6183391
5945-00-636-8779 54 1 56442 642H1 5340-00-753-9122 30 28 73342 6438326 84 12 12603 655267 4720-01-071
5945-00-636-8779 54 1 56442 642H1 5340-00-753-9122 30 28 73342 6438326 84 12 12603 655267 4720-01-071
9905-00-634-5269 157 7 4730-00-701-1964 116 3 6210-00-635-5686 55 16 5340-00-702-2848 31 13 5945-00-636-8779
Upgrade your Account Upgrade 4720-01-071-9876Nonmetallic Hose4720010719876 010719876 655267 19207 6183391
5945-00-636-8779 54 1 56442 642H1 5340-00-753-9122 30 28 73342 6438326 84 12 12603 655267 5 RNVC 2 DAC
5945-00-636-8779 54 1 56442 642H1 5340-00-753-9122 30 28 73342 6438326 84 12 12603 655267 5 RNVC 2 DAC
Restrictions 5945-00-636-8779
5945-00-636-8779 is a Electromagnetic Relay that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5945-00-636-8779
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-00-636-8779
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCTBD
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 2006
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5945-00-636-8779
- Part Number
- Manufacturer
- Status
- 6183391
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 6183391
- 02978 - Renk America Llc (Active)
- Secondary Buy
- Secondary Buy
- 1075543
- 12204 - Chrysler Realty Company Llc (Active)
- Secondary Buy
- Secondary Buy
- 2980B
- 78222 - R. H. Sheppard Co., Inc. (Active)
- Secondary Buy
- Secondary Buy
- WSE-4101A
- 24975 - Prestolite Electric Inc (Active)
- Secondary Buy
- Secondary Buy
- C80-1
- 3VEK3 - 313 Aerospace, Llc (Active)
- Secondary Buy
- Secondary Buy
- 539A
- 63928 - Panex Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2920006368779
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- WSE-4101A
- 68505 - Prestolite Electric Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5945006368779
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5945-00-636-8779
- Characteristic
- Specifications
- FIIG
- Specifications
- A03300
- Nonpile-Up Main Contact Arrangement [CRNG]
- 1 Pole, Single Throw, Both Positions Maintained
- Main Contact Maximum Voltage Rating In Volts [CWAB]
- 30.0 Dc
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 70.0 Amperes Dc Resistive Load
- Coil Quantity [APCN]
- 1
- Winding Quantity [AKDX]
- 1
- Winding Dc Resistance Rating [APNA]
- 80.0 Ohms Nominal Single Winding
- Operating Voltage Rating And Type At Specified Temp [CSXF]
- 24.0 Volts Dc 25 Deg Celsius Single Winding
- Terminal Type And Quantity [TTQY]
- 4 Threaded Stud All Functions
- Time Delay [CRXH]
- 0.025 Seconds Maximum Fixed Operate Time
- Time Delay [CRXH]
- 0.04 Seconds Maximum Fixed Release Time
- Duty Type [APNP]
- Intermittent
- Overall Length [ABHP]
- 4.500 Inches Nominal
- Overall Width [ABMK]
- 3.375 Inches Nominal
- Overall Height [ABKW]
- 2.593 Inches Nominal
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole Single Mounting Facility
- Mounting Facility Pattern [CQYJ]
- In-Line Single Mounting Facility
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 1.500 Inches Nominal Single Mounting Facility
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.266 Inches Nominal Single Mounting Facility
- Purpose For Which Designed [AKSL]
- General
- Fragility Factor [AFJN]
- Moderately Rugged
- Storage Type [BBRG]
- General Purpose Warehouse
Weapon Systems (WSDC) 5945-00-636-8779
DLA Procurement Analysis 5945-00-636-8779
- Last Stock Position:
- 19 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5945-00-636-8779
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2920
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2920
- X
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5945-00-636-8779
5945-14-269-7763 5945-14-365-0221 5945-14-292-7522 5945-33-126-2184 5945-21-851-8780 5945-12-155-0331 5945-15-207-1176 5945-27-033-5713 5945-14-453-9255 5945-66-046-0174 5945-14-520-2107 5945-14-479-2998 5945-14-527-8281 5945-14-519-6928 5945-99-530-6754 5945-14-454-1089 5945-15-200-9631 5945-12-319-3624
Freight Information 5945-00-636-8779
5945-00-636-8779 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5945-00-636-8779 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 5945-00-636-8779 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5945-00-636-8779 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5945-00-636-8779 is not classified as a special type of cargo when transported by water. 5945-00-636-8779 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5945-00-636-8779
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.5" H x 4.0" W x 3.0" L
- --
- --
- --
- Any Suitable Process
- 4.5" H x 4.0" W x 3.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- Special requirements
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5945-00-636-8779 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
