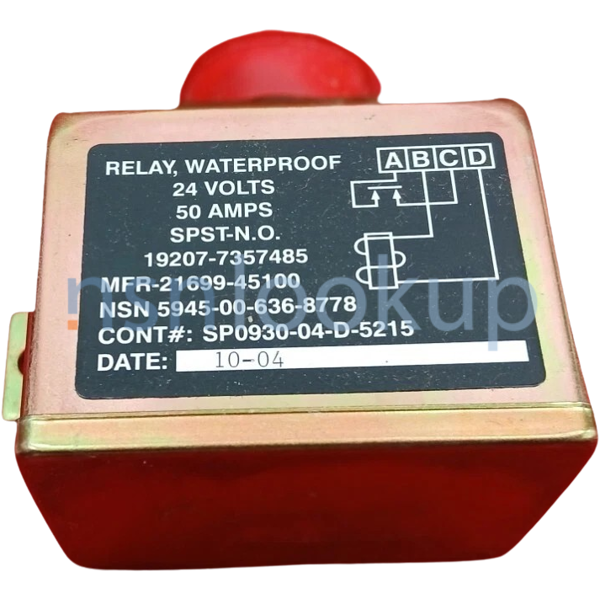

5945-00-636-8778
Electromagnetic Relay
5945006368778 006368778 19WP552 300746 7357485 TSH-1721-1 101HXX110
A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING. View more Electromagnetic Relay
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
August 2025
August 2025
NATO Update Count
49
49
NATO Data Quality
Marketplace 5945-00-636-8778
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5945-00-636-8778 5+ Documents (More...)
19WP552 300746 7357485 TSH-1721-1 101HXX110 A relay which is actuated by the effect of a magnetic field
RELAY,ELECTROMAGNETIC 1 EA NS Request Quotation Subscribe to View Vendor Details... 7357485 RELAY
Every Day 5945-00-636-8778 RQST Updated Every Day 5945-00-636-8778 RQST NE Related Documents 5945-00-
RELAY,ELECTROMAGNETIC 1 EA NS Request Quotation Subscribe to View Vendor Details... 7357485 RELAY
Every Day 5945-00-636-8778 RQST Updated Every Day 5945-00-636-8778 RQST NE Related Documents 5945-00-
to enable JavaScript in your web browser . 5310-14-404-3391Flat Washer5310144043391 144043391 80-300746
80-300746 A washer having a centrally located hole with a solid or laminated cross-section and two flat
550-2584 Machine Bolt 5306005502584 005502584,300746 6540Belt 24 Parts Kit5985661406540 661406540 300746
80-300746 A washer having a centrally located hole with a solid or laminated cross-section and two flat
550-2584 Machine Bolt 5306005502584 005502584,300746 6540Belt 24 Parts Kit5985661406540 661406540 300746
281-8798 5945-00-068-9566 5945-00-189-8705 5945-00-612-5740 5945-00-061-2686 5945-01-424-3298 5945-00-636-8778
281-8798 5945-00-068-9566 5945-00-189-8705 5945-00-612-5740 5945-00-061-2686 5945-01-424-3298 5945-00-636-8778
281-8798 5945-00-068-9566 5945-00-189-8705 5945-00-612-5740 5945-00-061-2686 5945-01-424-3298 5945-00-636-8778
Restrictions 5945-00-636-8778
5945-00-636-8778 is a Electromagnetic Relay that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5945-00-636-8778
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-00-636-8778
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCLBFBD
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5945-00-636-8778
- Part Number
- Manufacturer
- Status
- 7357485
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 19WP552
- 96139 - Riverside Manufacturing Llc (Active)
- Secondary Buy
- Secondary Buy
- 300746
- H0G87 - Wiba Zevenaar B.V. (Active)
- Secondary Buy
- Secondary Buy
- 7357485
- 97927 - Relays Inc (Active)
- Secondary Buy
- Secondary Buy
- TSH-1721-1
- 0U8Z9 - National Patent Analytical Systems, (Active)
- Secondary Buy
- Secondary Buy
- 7357485
- 21699 - Electro-Tech Inc. (Active)
- Secondary Buy
- Secondary Buy
- 7357485
- 27192 - Drs Naval Power Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- TSH-1721-1
- 52401 - Precision Switching Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 101HXX110
- 78290 - Struthers-Dunn Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5945006368778
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5945-00-636-8778
- Characteristic
- Specifications
- FIIG
- Specifications
- A03300
- Nonpile-Up Main Contact Arrangement [CRNG]
- 1 Pole, Single Throw, Normally Closed, Momentary Action
- Main Contact Maximum Voltage Rating In Volts [CWAB]
- 28.0 Dc
- Main Contact Load Current Rating At Maximum Rated Voltage [CTDL]
- 58.7 Amperes Dc Resistive Load
- Coil Quantity [APCN]
- 1
- Winding Quantity [AKDX]
- 1
- Winding Dc Resistance Rating [APNA]
- 0.48 Ohms Nominal Single Winding
- Operating Voltage Rating And Type At Specified Temp [CSXF]
- 24.0 Volts Dc 25 Deg Celsius Single Winding
- Nominal Operating Current Rating And Type [CRPQ]
- 50.0 Amperes Dc Single Winding
- Terminal Type And Quantity [TTQY]
- 4 Pin All Functions
- Duty Type [APNP]
- Continuous
- Environmental Protection [ADZC]
- Watertight
- Overall Length [ABHP]
- 3.500 Inches Nominal
- Overall Diameter [ADAV]
- 3.188 Inches Nominal
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole Single Mounting Facility
- Mounting Facility Pattern [CQYJ]
- In-Line Single Mounting Facility
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 4.000 Inches Nominal Single Mounting Facility
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.281 Inches Nominal Single Mounting Facility
Weapon Systems (WSDC) 5945-00-636-8778
DLA Procurement Analysis 5945-00-636-8778
- Last Stock Position:
- 37 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5945-00-636-8778
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5945-00-636-8778
Freight Information 5945-00-636-8778
5945-00-636-8778 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5945-00-636-8778 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5945-00-636-8778 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5945-00-636-8778 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5945-00-636-8778 is not classified as a special type of cargo when transported by water. 5945-00-636-8778 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5945-00-636-8778
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.5" H x 3.2" W x 3.2" L
- --
- --
- --
- Any Suitable Process
- 3.5" H x 3.2" W x 3.2" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- Special requirements
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5945-00-636-8778 10 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M523P6917
- 18 Sep 2023
- Subscribe
- 275
- Subscribe
- Subscribe
- Subscribe
- SPE7M522P0078
- 03 Nov 2021
- Subscribe
- 183
- Subscribe
- Subscribe
- Subscribe
- SPE7M518V186E
- 24 Sep 2018
- Subscribe
- 164
- Subscribe
- Subscribe
- Subscribe
- SPE7M518V065C
- 23 Jul 2018
- Subscribe
- 186
- Subscribe
- Subscribe
- Subscribe
- SPE7M518P2231
- 14 Nov 2017
- Subscribe
- 275
- Subscribe
- Subscribe
- Subscribe
- SPE7M517PF100
- 05 Sep 2017
- Subscribe
- 143
- Subscribe
- Subscribe
- Subscribe
- SPE7M517V6509
- 05 Jun 2017
- Subscribe
- 134
- Subscribe
- Subscribe
- Subscribe
- SPE7M516V6330
- 19 Aug 2016
- Subscribe
- 137
- Subscribe
- Subscribe
- Subscribe
- SPE7M515V5047
- 15 Sep 2015
- Subscribe
- 23
- Subscribe
- Subscribe
- Subscribe
- SPE7M515M3765
- 21 Jan 2015
- Subscribe
- 204
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5945-00-636-8778 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
