5945-00-620-0642
Electronic Chopper
5945006200642 006200642 1658391-1 95908-8 C1121562-1 A8889 10127981
An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING. View more Electronic Chopper
May 2023
22
Marketplace 5945-00-620-0642
Request a Quotation from participating marketplace vendors
Related Documents 5945-00-620-0642 5+ Documents (More...)
A8889 CHOPPER,ELECTRONIC 12 EA NS Request Quotation Subscribe to View Vendor Details... 1658391-1 CHOPPER
,ELECTRONIC 1 EA NS Request Quotation Updated Every Day 5945-00-620-0642 RQST NE Updated Every Day 5945
vendors Request Updated Every Day 5945-99-999-7503 https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945-00-620-0642
Electronic Chopper 5945006200642 006200642 Upgrade your Account Upgrade 5945-00-620-0642Electronic
-001 A8889-001 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the
https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945-00-620-0642 Electronic Chopper 5945006200642 006200642
Related Documents 5945-00-754-7261 2+ Documents RQST https//www.nsnlookup.com /fsg-59/fsc-5945/us 5945-00-620-0642
Electronic Chopper 5945006200642 006200642 -0642 Electronic Chopper 5945006200642006200642 https
. ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-495-0206 Spur Gear 3020014950206014950206,A8889
Electronic Chopper 5945006200642 006200642 $1 a day Upgrade your Account Upgrade 1650-01-154-7946Vent
Restrictions 5945-00-620-0642
5945-00-620-0642 is a Electronic Chopper that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5945-00-620-0642
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5945-00-620-0642
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5945-00-620-0642
- Part Number
- Manufacturer
- Status
- 1658391-1
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- 95908-8
- 55901 - Dare Electronics, Inc. (Active)
- Secondary Buy
- Secondary Buy
- C1121562-1
- 06845 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- A8889
- 05584 - Autodyne Manufacturing Co Inc (Active)
- Secondary Buy
- Secondary Buy
- 10127981
- 18876 - Us Army Aviation And Missile Command (Active)
- Secondary Buy
- Secondary Buy
- 95908-8
- 08664 - Bristol Babcock Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5945-00-620-0642
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K
- Drive Voltage Relationship To Input Voltage [BGRB]
- Not Rated
- Dwell Time Rating In Deg [BGRP]
- 15.0 Maximum

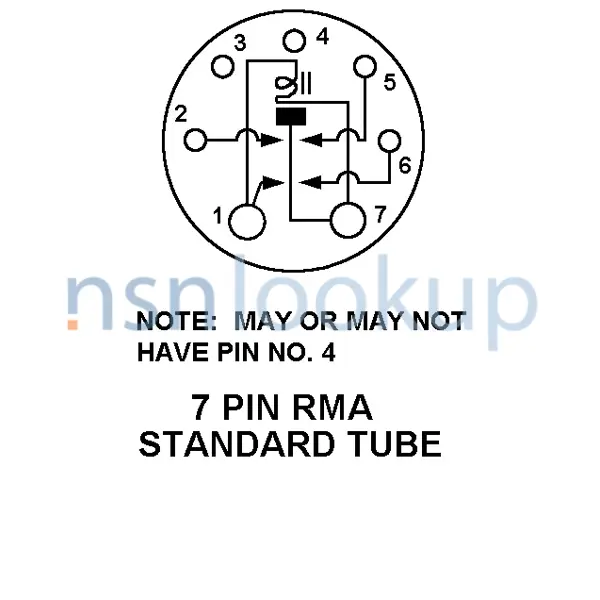

- Base Connection Wiring Style [BGRX]
- 7 Pin Standard Tube
- Contact Arrangement [APFR]
- Single Pole, Double Throw, One Position Momentary
- Contact Current Rating [BGRM]
- 2.0 Milliamperes Nominal
- Contact Operation Sequence [BGRK]
- Any Acceptable
- Contact Voltage Rating [BGRL]
- 3.0 Ac Volts Nominal
- Hermetically Sealed Feature [AXNN]
- Not Provided
- Mounting Configuration [ALGC]
- Two 0.141 In. Dia Holes Spaced 0.875 In. Apart On Flange
- Mounting Facility Size [AWYX]
- 0.141 In. Dia
- Mounting Facility Quantity [AKPV]
- 2
- Mounting Provision [ABDR]
- Holes
- Mounting Method [AXGY]
- Flange And Hole
- Output/Input Voltage Relationship [BGRH]
- Not Rated
- Unit Type [APQB]
- Electromechanical
- Input Voltage Rating [APNX]
- 6.3 Ac Volts Nominal
- Plug In Mounting Feature [BGRS]
- Not Provided
- Overall Diameter [ADAV]
- 0.845 Inches Nominal
- Overall Length [ABHP]
- 2.077 Inches Nominal
- Terminal Quantity [AARA]
- 7
- Terminal Type [AARB]
- Tube Plug
DLA Procurement Analysis 5945-00-620-0642
Management Data 5945-00-620-0642
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5945-00-620-0642
Freight Information 5945-00-620-0642
5945-00-620-0642 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5945-00-620-0642 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5945-00-620-0642 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5945-00-620-0642 is not classified as a special type of cargo when transported by water. 5945-00-620-0642 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5945-00-620-0642
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-1249, Paper, Tissue
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Special requirements
- A-A-1249, Paper, Tissue
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
