5940-01-523-7160
Terminal Board
5940015237160 015237160 A202007NL
An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD. View more Terminal Board
May 2023
2
Marketplace 5940-01-523-7160
Request a Quotation from participating marketplace vendors
Related Documents 5940-01-523-7160 2+ Documents (More...)
/fsg-59/fsc-5940/us
United States (US) 4. 5940-01-523-7160 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5940-01-523-7160 RQST NE Updated Every Day 5940-01-523-7160 RQST
JavaScript in your web browser . 5840-22-285- 1845Hv Moduler/Display5840222851845 222851845237160 -015237160
Restrictions 5940-01-523-7160
5940-01-523-7160 is a Terminal Board that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5940-01-523-7160
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5940-01-523-7160
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 5940-01-523-7160
- Part Number
- Manufacturer
- Status
- A202007NL
- Manufacturer
- 005K5 - Cooper Bussmann Corp Bussmann Mfg (Obsolete)
- Original Design
- Original Design
Datasheet 5940-01-523-7160
- Characteristic
- Specifications
- FIIG
- Specifications
- A011B0
- Material [MATT]
- Plastic Board
- Material [MATT]
- Copper Alloy Terminals

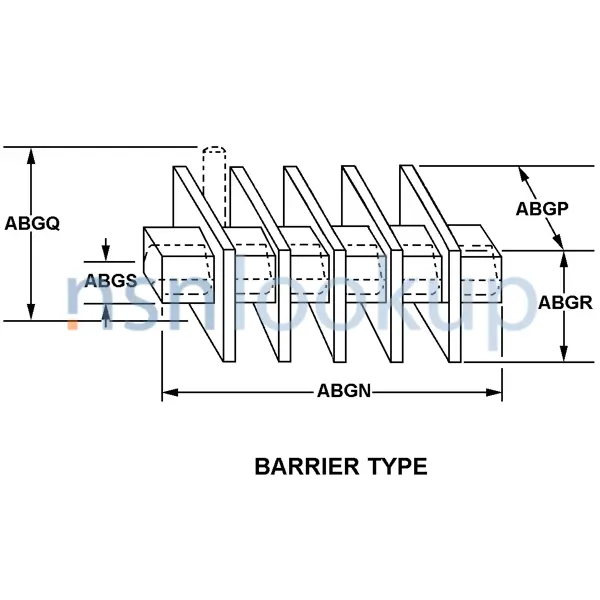

- Body Style [AAQL]
- Barrier Type
- Board Overall Length [ABGN]
- 3.430 Inches
- Board Overall Width [ABGP]
- 0.650 Inches
- Board Overall Height [ABGQ]
- 0.890 Inches
- Board Height Excluding Terminals [ABGR]
- 0.760 Inches
- Base Thickness [ABGS]
- 0.400 Inches
- Terminal Pattern Arrangement [CWLG]
- Single Row
- Center To Center Distance Between Terminals [ABCT]
- 0.375 Inches
- Terminal Design [CWLN]
- Nonfeedthru
- Nonfeedthru Terminal Quantity [CSCS]
- 7 Single
- Board Construction [ABCX]
- Solid Construction
- Terminal Facility Quantity [ABDB]
- 7
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole
- Mounting Hole Diameter [AAMA]
- 0.150 Inches
- Current Rating In Amps [AMPS]
- 30.0
- Dielectric Withstanding Voltage In Volts [AAPB]
- 300.0
- Part Name Assigned By Controlling Agency [CXCY]
- Single Row Terminal Block
