5940-01-229-2028
Quick Disconnect Terminal
5940012292028 012292028 837-158 000-8003-322
A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR. View more Quick Disconnect Terminal
May 2023
4
Marketplace 5940-01-229-2028
Request a Quotation from participating marketplace vendors
Related Documents 5940-01-229-2028 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5940-01-229-2028 RQST NE Updated Every Day 5940-01-229-2028 RQST
Updated Every Day 5940-01-229-2028 RQST NE Related Documents 5940-01-229-2028 1+ Documents ( More...
Restrictions 5940-01-229-2028
5940-01-229-2028 is a Quick Disconnect Terminal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5940-01-229-2028
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5940-01-229-2028
- National Security Agency (DGX1)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- DCX1
- Supplementary Receivers:
- CX
Approved Sources 5940-01-229-2028
- Part Number
- Manufacturer
- Status
- 837-158
- Manufacturer
- 79963 - Zierick Mfg Corp (Active)
- Primary Buy
- Primary Buy
- 000-8003-322
- 94756 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5940-01-229-2028
- Characteristic
- Specifications
- FIIG
- Specifications
- A006B0

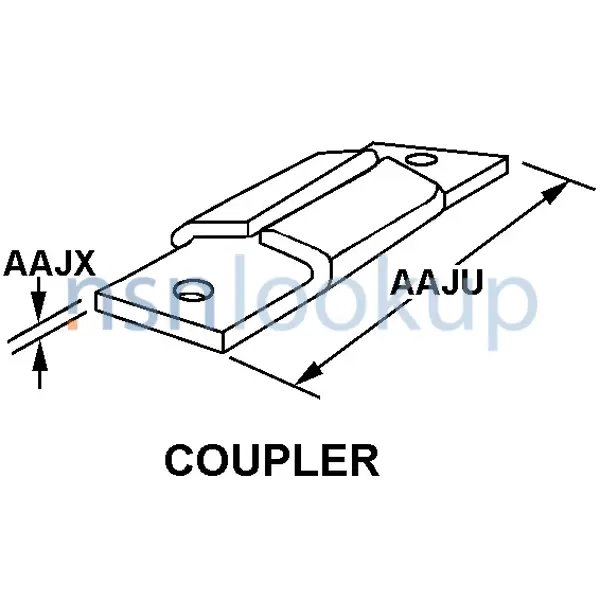

- Basic Shape Style [AGTA]
- Coupler
- Overall Length [AAJU]
- 0.347 Inches
- Material Thickness [AAJX]
- 0.032 Inches
- Conductor Accommodation Type [CSFJ]
- Slant Lug W/One Hole Single End
- Largest Width [AALB]
- 0.280 Inches Single End
- Quick Disconnect Style [AAKG]
- Tab W/Hole
- Tab Width [AAKH]
- 0.250 Inches
- Electrical Insulation Feature [AALV]
- Uninsulated
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Tin Overall Single Layer
DLA Procurement Analysis 5940-01-229-2028
Management Data 5940-01-229-2028
NATO Stock Numbers Related to 5940-01-229-2028
Freight Information 5940-01-229-2028
5940-01-229-2028 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5940-01-229-2028 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5940-01-229-2028 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5940-01-229-2028 is not classified as a special type of cargo when transported by water. 5940-01-229-2028 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5940-01-229-2028 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
