5940-01-181-4030
Terminal Board
5940011814030 011814030 13216E1955
An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD. View more Terminal Board
May 2023
4
Marketplace 5940-01-181-4030
Request a Quotation from participating marketplace vendors
Related Documents 5940-01-181-4030 2+ Documents (More...)
/fsg-59/fsc-5940/us
Updated Every Day 5940-01-181-4030 RQST NE Related Documents 5940-01-181-4030 2+ Documents ( More...
BUY NE FedMall Updated Every Day 5940-01-181-4030 RQST NE Updated Every Day 5940-01-181-4030 RQST Updated
Terminal Board 5940011814030 011814030 Updated Every Day 5940-01-181-4030 RQST Updated https//www.nsnlookup.com
Restrictions 5940-01-181-4030
5940-01-181-4030 is a Terminal Board that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5940-01-181-4030
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5940-01-181-4030
- US Army (A918)
- Effective Date:
- 1 Dec 2004
- Former MOE Rule:
- A917
- Supplementary Receivers:
- CL
Approved Sources 5940-01-181-4030
- Part Number
- Manufacturer
- Status
- 13216E1955
- Manufacturer
- 97403 - Cecom Lr Center (Active)
- Primary Buy
- Primary Buy
Datasheet 5940-01-181-4030
- Characteristic
- Specifications
- FIIG
- Specifications
- A011B0
- Material [MATT]
- Plastic Board
- Material Document And Classification [MDCL]
- Mil-P-18177,Type Gee Mil Spec All Material Responses Board

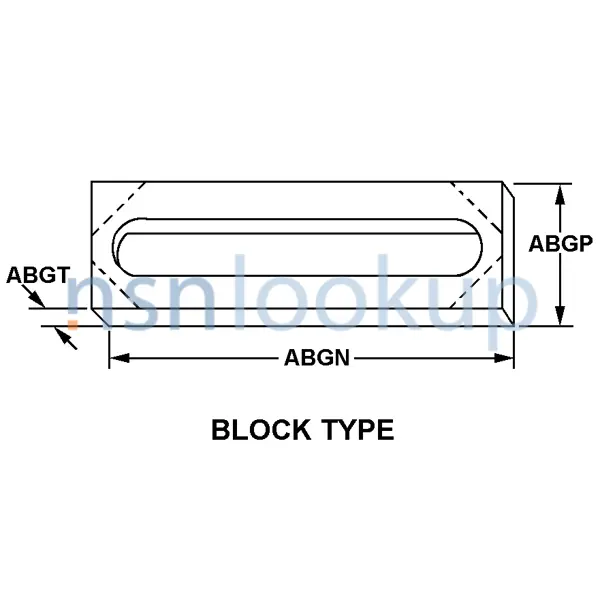

- Body Style [AAQL]
- Block Type
- Board Overall Length [ABGN]
- 12.500 Inches
- Board Overall Width [ABGP]
- 5.000 Inches
- Board Thickness [ABGT]
- 0.250 Inches
- Terminal Pattern Arrangement [CWLG]
- Random
- Board Construction [ABCX]
- Solid Construction
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Hole
- End Item Identification [AGAV]
- 6115-00-926-0843
DLA Procurement Analysis 5940-01-181-4030
Management Data 5940-01-181-4030
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5940-01-181-4030
Freight Information 5940-01-181-4030
5940-01-181-4030 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061045. A Sub NMFC of Z. It has a NMFC Description of BOARDS PRINTED CIRCUIT ELEC. 5940-01-181-4030 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 5940-01-181-4030 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5940-01-181-4030 is not classified as a special type of cargo when transported by water. 5940-01-181-4030 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5940-01-181-4030 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
