5940-01-106-3259
Quick Disconnect Terminal
5940011063259 011063259 Z-50-003 MA250DMFM ST110 VWA-O 7255 401939 18011 871
A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR. View more Quick Disconnect Terminal
November 2023
17
Marketplace 5940-01-106-3259
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Updated Every Day Updated Every Day Related Documents 5940-01-106-3259 5+ Documents (More...)
,QUICK DISCONNECT 5 EA NS Request Quotation Updated Every Day Z-50-003 RQST NE Updated Every Day MA250DMFM
RQST NE Updated Every Day Z-50-003 RQST NE Updated Every Day MA250DMFM RQST NE Updated Every Day 5940
www.nsnlookup.com /fsg-49/fsc-4920/fr 4920-14-260-3064 Robinet De Commande 4920142603064142603064 401939
https//www.nsnlookup.com /fsg-59/fsc-5940/us 5940-01-106-3259 Quick Disconnect Terminal 5940011063259
www.nsnlookup.com /fsg-49/fsc-4920/fr 4920-14-260-3064 Robinet De Commande 4920142603064142603064 401939
Quick Disconnect Terminal 5940011063259 5940-01-106-3259Quick Disconnect Terminal5940011063259
Quick Disconnect Terminal 5940011063259 5940-01-106-3259Quick Disconnect Terminal5940011063259
011063259 Z-50-003 MA250DMFM ST110 VWA-O 7255 401939 www.nsnlookup.com /fsg-49/fsc-4920/fr 4920-14-260
https//www.nsnlookup.com /fsg-81/fsc-8145/de 8145-12-373-5162 8145123735162123735162,GLS01-P-ST110-000
Quick Disconnect Terminal 5940011063259 www.nsnlookup.com /fsg-49/fsc-4920/fr 4920-14-260 https
Restrictions 5940-01-106-3259
5940-01-106-3259 is a Quick Disconnect Terminal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5940-01-106-3259
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5940-01-106-3259
- US Air Force (FXGG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2004
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Egypt (YQ01)
- Effective Date:
- 1 Jan 2015
- Australia (ZA01)
- Effective Date:
- 1 Aug 2006
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5940-01-106-3259
- Part Number
- Manufacturer
- Status
- ST110
- Manufacturer
- 78174 - Standard Motor Products (Active)
- Primary Buy
- Primary Buy
- VWA-O
- 98410 - Molex-Etc Inc Sub Of Molex Inc (Active)
- Primary Buy
- Primary Buy
- 7255
- 16428 - Belden Wire & Cable Company Llc (Active)
- Secondary Buy
- Secondary Buy
- 401939
- 41843 - Hobart Brothers Llc (Active)
- Secondary Buy
- Secondary Buy
- 18011
- 79061 - Vaco Products Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 871
- 79550 - Electro-Wire Products Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MA250DMFM
- 53387 - 3M Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- Z-50-003
- 53387 - 3M Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- Z-50-003
- 76381 - 3M Company (Active)
- Advisory Reference
- Advisory Reference
- MA250DMFM
- 76381 - 3M Company (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5940-01-106-3259
- Characteristic
- Specifications
- FIIG
- Specifications
- A006B0
- Basic Shape Style [AGTA]
- Coupler
- Overall Length [AAJU]
- 0.750 Inches
- Material Thickness [AAJX]
- 0.032 Inches
- Conductor Accommodation Type [CSFJ]
- Straight Barrel All Ends
- Quick Disconnect Style [AAKG]

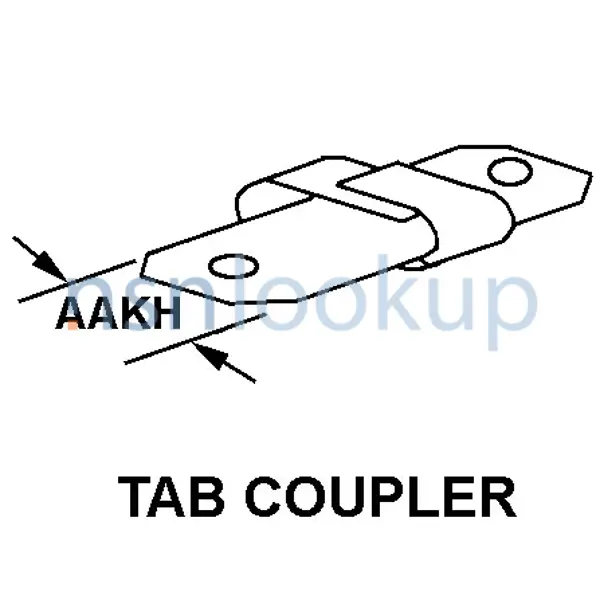

- Tab Coupler
- Tab Width [AAKH]
- 0.250 Inches
- Electrical Insulation Feature [AALV]
- Uninsulated
- Material [MATT]
- Copper Alloy Overall
- Special Features [FEAT]
- First Male Tab Has 10 Degree Bend-Up Blade Angle,Second Male Tab Has 120 Degree Bend-Back Blade Angle; Tab Receptacle Modified,0.250 In Nom Tab Width Accommodated
