5940-00-945-0952
Lug Terminal
5940009450952 009450952 860401 1415-4
A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU. View more Lug Terminal
May 2023
9
Marketplace 5940-00-945-0952
Request a Quotation from participating marketplace vendors
Related Documents 5940-00-945-0952 5+ Documents (More...)

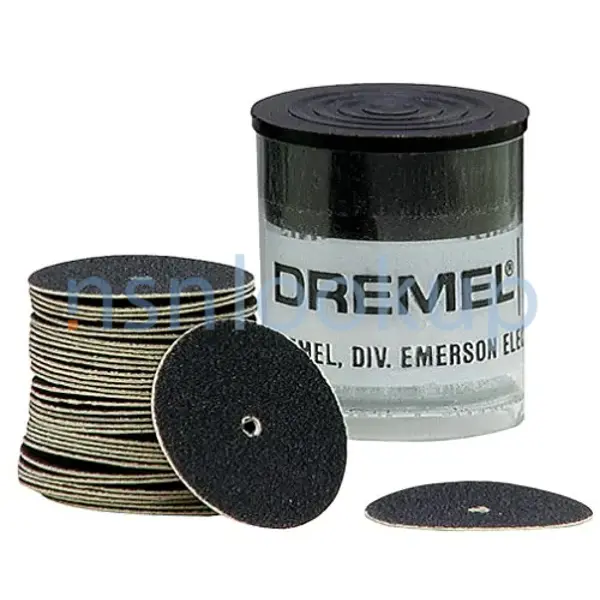

Photo 1/3 NSN 5940-00-945-0952 (Identification) 2/3 NSN 5940-00-945-0952 (Identification) 3/3 -
RQST NE Updated Every Day 5940-00-945-0952 RQST Updated Every Day 5940-00-945-0952 RQST NE Related
Lug Terminal 5940009450952 009450952,860401 Updated Every Day 5940-00-945-0952 RQST NE Related
Lug Terminal 5940009450952 009450952,860401 4710190039167190039167 https//www.nsnlookup.com /fsg-47/
https//www.nsnlookup.com /fsg-47/fsc-4710/br 4710-19-003-9167 Metallic Pipe 4710190039167190039167 860401
Lug Terminal 5940009450952 009450952,860401 5519 860401 https https//www.nsnlookup.com /fsg https
Restrictions 5940-00-945-0952
5940-00-945-0952 is a Lug Terminal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5940-00-945-0952
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5940-00-945-0952
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 May 2003
Approved Sources 5940-00-945-0952
- Part Number
- Manufacturer
- Status
- 1415-4
- Manufacturer
- 91967 - Halsit Holdings Llc (Active)
- Primary Buy
- Primary Buy
- 860401
- 66943 - Datron World Communications, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 1415-4
- 83330 - Dialight Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5940-00-945-0952
- Characteristic
- Specifications
- FIIG
- Specifications
- A006B0
- Basic Shape Style [AGTA]
- Solder
- Overall Length [AAJU]
- 0.641 Inches
- Overall Width [AAJV]
- 0.312 Inches
- Material Thickness [AAJX]
- 0.018 Inches
- Conductor Accommodation Type [CSFJ]
- Slant Lug W/One Hole Single End
- Largest Width [AALB]
- 0.187 Inches Single End
- Maximum Conductor Size Accommodated [AAKV]
- 18 Awg
- Mounting Method Style [AALX]
- Ring
- Mounting Hole Diameter [AAMA]
- 0.120 Inches
- Mounting Tongue Width [AAMC]
- 0.312 Inches
- Mounting Facility Thickness [AAMK]
- 0.018 Inches
- Electrical Insulation Feature [AALV]
- Uninsulated
- Material [MATT]
- Copper Alloy Overall
- Surface Treatment [SFTT]
- Tin Overall Single Layer
DLA Procurement Analysis 5940-00-945-0952
Management Data 5940-00-945-0952
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2006
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5940-00-850-2610
- Z
Similar Supply Items to 5940-00-945-0952
Freight Information 5940-00-945-0952
5940-00-945-0952 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5940-00-945-0952 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5940-00-945-0952 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5940-00-945-0952 is not classified as a special type of cargo when transported by water. 5940-00-945-0952 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5940-00-945-0952 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
