5935-01-655-1868
Electrical Receptacle Connector
5935016551868 016551868 217086 SX3835-14-9S-2
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
November 2023
2
Marketplace 5935-01-655-1868
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-655-1868 2+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-01-655-1868 RQST NE Updated Every Day 5935-01-655-1868 RQST
Updated Every Day 5935-01-655-1868 RQST NE Related Documents 5935-01-655-1868 2+ Documents ( More...
https//www.nsnlookup.com /fsg-29/fsc-2910/fr 2910-14-563-5573 Engine Fuel Tank 2910145635573145635573 217086
Day 2910-14-563-5573 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-655-1868
Restrictions 5935-01-655-1868
5935-01-655-1868 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-655-1868
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-655-1868
- US Air Force (FXGX)
- Effective Date:
- 1 May 2016
Approved Sources 5935-01-655-1868
- Part Number
- Manufacturer
- Status
- 217086
- Manufacturer
- 59875 - Eaton Corp (Active)
- Source Control
- Source Control
- SX3835-14-9S-2
- 04820 - Hermetic Seal Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-655-1868
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Bushing Diameter [ABKH]
- 0.936 Inches Minimum And 0.938 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 1.500 Inches Nominal
- Contact Position Arrangement Style [AFQX]
- 28A16 Single Mating End

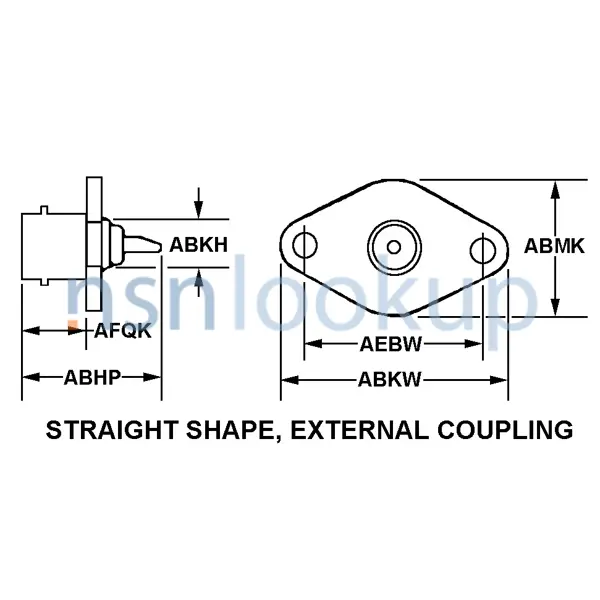

- Body Style [AAQL]
