5935-01-651-8410

Plug-In Electronic Components Socket

5935016518410 016518410 8-PIN-SM

An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket

5935-01-651-8410 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 5935016518410 016518410

Managed by United States
NSN Created on 1 Feb 2016
Data Last Changed
June 2023
NATO Update Count
1
NATO Data Quality
AAQL Style 74B for 5935-01-651-8410 1/2
NSN 5935-01-651-8410 (Identification) 1/2
AEVB Style 11D for 5935-01-651-8410 2/2
NSN 5935-01-651-8410 (Identification) 2/2

5935-01-651-8410 Stock and Availability Marketplace 5935-01-651-8410

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
5935-01-651-8410 BUY NE FedMallFedMall.mil
eBay Updated Every Day
5935-01-651-8410 RQST NE eBay
eBay Updated Every Day
5935-01-651-8410 RQST eBay
Amazon Updated Every Day
5935-01-651-8410 RQST NE Amazon

5935-01-651-8410 Related Documents Related Documents 5935-01-651-8410 3+ Documents (More...)

(Identification) 1/2 NSN 5935-01-651-8410 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5935-01-651-8410 RQST NE Updated Every Day 5935-01-651-8410 RQST
Updated Every Day 5935-01-651-8410 RQST NE Related Documents 5935-01-651-8410 4+ Documents ( More...
Documents ( More... ) https//www.nsnlookup.com https/ https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-651-8410
Plug-In Electronic Components Socket Documents 5935-01-651-8410 4+ Documents ( More... https//www.nsnlookup.com
01651 Drive Pin Punch 5120226031160 226031160,01651 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-651-8410

5935-01-651-8410 Demil Restrictions 5935-01-651-8410

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: P | PMIC: A | EDC: A | ADPEC: 0

5935-01-651-8410 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

5935-01-651-8410 HTS and ScheduleB Import and Export 5935-01-651-8410

5935-01-651-8410 End Users End Users 5935-01-651-8410

US Army (A918)
Effective Date:
1 Mar 2017
Supplementary Receivers:
AJAN
US Air Force (FUGX)
Effective Date:
1 Feb 2016

5935-01-651-8410 Manufacturers Approved Sources 5935-01-651-8410

5935-01-651-8410 Technical Data Datasheet 5935-01-651-8410

Characteristic
Specifications
FIIG
A02300
Accommodated Contact Quantity [AFRL]
8
Body Style [AAQL]
Irregular
End Item Identification [AGAV]
Mobile Unit

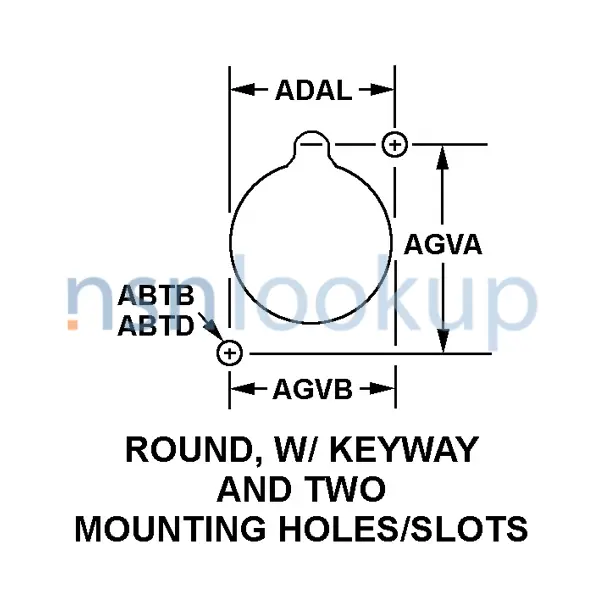

Mounting Hole Style [AEVB]
Round, W/Keyway And Two Mounting Holes/Slots
Mounting Method [AXGY]
Body Through Hole
Mounting Type For Which Designed [BCNX]
Chassis
Part Name Assigned By Controlling Agency [CXCY]
Socket, Plug In
Overall Height [ABKW]
0.625 Inches Nominal
Overall Length [ABHP]
2.250 Inches Nominal
Overall Width [ABMK]
2.00 Inches Nominal
Terminal Type And Quantity [TTQY]
8 Screw

5935-01-651-8410 Stock, Inventory and Procurement DLA Procurement Analysis 5935-01-651-8410

DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

5935-01-651-8410 Management Data Management Data 5935-01-651-8410

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Department of the Army (DA)
EA
Subscribe
1
Oct 2021
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2020
Defense Logistics Agency (DS)
EA
Subscribe
1
Nov 2019
Department of the Air Force (DF)
EA
Subscribe
1

Army Army

Materiel Category and Inventory Manager:
Q
Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity:
2
Stock Fund Secondary Items
Management Inventory Segment:
2
Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
Weapons System / End Item / Homogeneous Group:
00
DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements:
X
Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

5935-01-651-8410 Similar Items Similar Supply Items to 5935-01-651-8410

5935-01-651-8410 Freight Data Freight Information 5935-01-651-8410

5935-01-651-8410 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-651-8410 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-651-8410 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-01-651-8410 is not classified as a special type of cargo when transported by water. 5935-01-651-8410 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
