5935-01-626-1874
Electrical Receptacle Connector
5935016261874 016261874 MIL-DTL-2726/16 M2726/16-002 M2726/16-002 SYM 1147.2
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
May 2023
1
Marketplace 5935-01-626-1874
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-626-1874 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-01-626-1874 RQST NE Updated Every Day 5935-01-626-1874 RQST
) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-626-1874 Electrical Receptacle Connector 016261874
Electrical Receptacle Connector 016261874 Account Upgrade 5935-01-626-1874Electrical Receptacle
Connector5935016261874 016261874 MIL-DTL-2726/16 M2726 /16-002 M2726/16-002 SYM 1147.2 An electrical
Electrical Receptacle Connector 016261874 Account Upgrade 5935-01-626-1874Electrical Receptacle
Connector5935016261874 016261874 MIL-DTL-2726/16 M2726 /16-002 M2726/16-002 SYM 1147.2 An electrical
Documents 5935-01-444-3666 4+ Documents ( More... https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-626-1874
Electrical Receptacle Connector 016261874 Upgrade your Account Upgrade 5935-01-626-1874Electrical
Electrical Receptacle Connector 016261874 your Account Upgrade 5935-01-626-1874Electrical https
Electrical Power Cable Assembly 004491189 Request Quotation Subscribe to View Vendor Details https 016261874
Restrictions 5935-01-626-1874
5935-01-626-1874 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-01-626-1874
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-626-1874
- US Navy (N9BN)
- Effective Date:
- 1 Feb 2014
- Supplementary Collaborators:
- HD
Approved Sources 5935-01-626-1874
- Part Number
- Manufacturer
- Status
- M2726/16-002
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-2726/16
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- M2726/16-002 SYM 1147.2
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-626-1874
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 450.0 Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 4 Single Mating End
- Contact Removability [AFQZ]
- Removable Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 40.0 Single Mating End Single Contact Grouping
- Contact Maximum Frequency Rating [AFRF]
- 0.060 Kilohertz Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Silver Single Mating End Single Contact Grouping

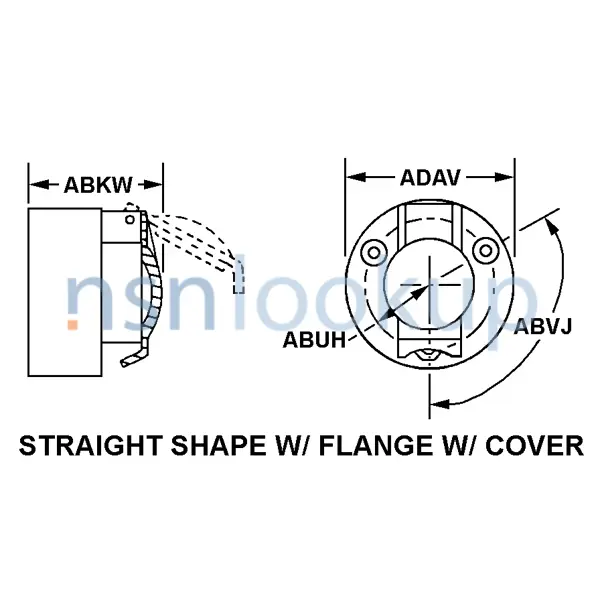

- Body Style [AAQL]
- Straight Shape W/Flange W/Cover
- Mating End Quantity [AFQW]
- 1
- Mounting Hole Circle Radius [ABUH]
- 2.812 Inches Nominal
- Included Contact Quantity [CXCG]
- 4 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Pin Single Mating End Single Contact Grouping
- Precious Material [PRMT]
- Silver
- Overall Diameter [ADAV]
- 6.125 Inches Nominal
- Overall Height [ABKW]
- 5.687 Inches Nominal
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Crimp Single Mating End Single Contact Grouping
DLA Procurement Analysis 5935-01-626-1874
Management Data 5935-01-626-1874
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-01-626-1874
Freight Information 5935-01-626-1874
5935-01-626-1874 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-626-1874 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-626-1874 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-626-1874 is not classified as a special type of cargo when transported by water. 5935-01-626-1874 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-01-626-1874 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
