5935-01-622-2596
Electrical Connector Coupling Nut
5935016222596 016222596 MIL-DTL-26482 MS3186C107B
An item with internal threads and an integral seat, specifically designed to hold together mated electrical connector components. View more Electrical Connector Coupling Nut
July 2025
3
Marketplace 5935-01-622-2596
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-622-2596 5+ Documents (More...)

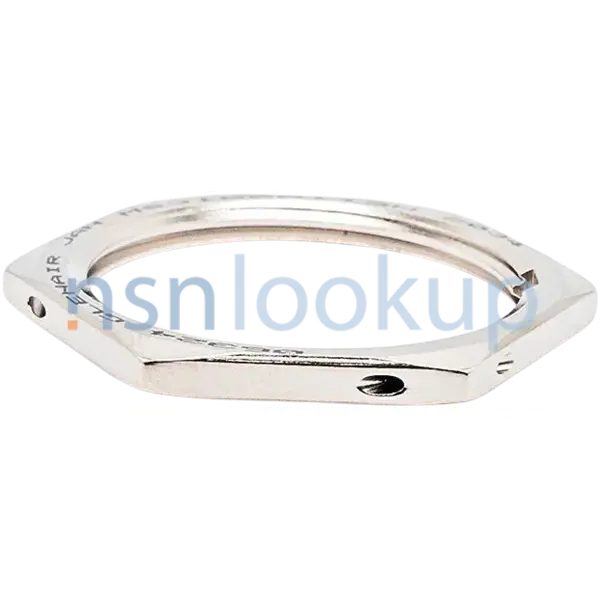

Photo 1/3 5935-01-622-2596 Photo 2/3 NSN 5935-01-622-2596 (Identification) 3/3 - - - 1.
RQST NE Updated Every Day 5935-01-622-2596 RQST Updated Every Day 5935-01-622-2596 RQST NE Related Documents
Upgrade your Account Upgrade 5935-01-596-6122Electrical Plug Connector5935015966122 015966122 MIL-DTL-26482
MIL-DTL-26482 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935- https//www.nsnlookup.com /fsg
Upgrade your Account Upgrade 5935-01-563-5417Electrical Connector Cover5935015635417 015635417 MIL-DTL-26482
Electrical Connector Cover 5935015635417 Upgrade your https//www.nsnlookup.com /fsg-59 MIL-DTL-26482
Upgrade your Account Upgrade 5935-01-675-6268Electrical Plug Connector5935016756268 016756268 MIL-DTL-26482
Account Upgrade 5935-01-618-8071Dust And Moisture Seal Protective Cover5935016188071 016188071 MIL-DTL-26482
Upgrade your Account Upgrade 5935-01-694-5137Electrical Plug Connector5935016945137 016945137 MIL-DTL-26482
your Account Upgrade 5935-01-312-5247Electrical Connector Coupling Nut5935013125247 013125247 MIL-DTL-26482
Restrictions 5935-01-622-2596
5935-01-622-2596 is a Electrical Connector Coupling Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5935-01-622-2596
- US Navy (N9BN)
- Effective Date:
- 1 Oct 2013
- Supplementary Collaborators:
- KE
Approved Sources 5935-01-622-2596
- Part Number
- Manufacturer
- Status
- MS3186C107B
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-26482
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5935-01-622-2596
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Fabrication Method [AARN]
- Cast
- Material [MATT]
- Steel Corrosion Resisting Overall
- Nominal Thread Size [CQJX]
- 0.0750 Inches
- Nominal Tube Outside Diameter [CQRJ]
- 0.750 Inches
- Nut Height [ADEA]
- 0.125 Inches Nominal
- Nut Style [ACTA]
- Tube Coupling
- Smallest Inside Diameter [BSPX]
- 0.750 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Connector,Hex
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series [BZRR]
- Unef
- Thread Pitch Diameters [AAJE]
- -0.0500 To 0.0500 Inches
- Thread Tolerance Class [CTTC]
- Unef Internal
- Width Across Flats [ASDB]
- 0.937 Inches Nominal
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5935-01-622-2596
DLA Procurement Analysis 5935-01-622-2596
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-01-622-2596
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-01-622-2596
Freight Information 5935-01-622-2596
5935-01-622-2596 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105200. A Sub NMFC of X. It has a NMFC Description of FITTINGS CABLE/CHAIN/ROPE I/S. 5935-01-622-2596 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54160 which rates the freight between FCL and LCL. 5935-01-622-2596 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-01-622-2596 is not classified as a special type of cargo when transported by water. 5935-01-622-2596 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-01-622-2596 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
