5935-01-614-7409
Plug-In Electronic Components Socket
5935016147409 016147409 110-13-628-41-001000
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
1
Marketplace 5935-01-614-7409
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-614-7409 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-01-614-7409 RQST NE Updated Every Day 5935-01-614-7409 RQST
Updated Every Day 5935-01-614-7409 RQST NE Related Documents 5935-01-614-7409 3+ Documents ( More...
Components Socket your Account Upgrade 5935-01-614-7409Plug-In Electronic Components Socket5935016147409 016147409
110-13-628 Documents 5935-01-614-7409 2+ Documents ( More... https//www.nsnlookup.com /fsg-59/fsc-5935
Restrictions 5935-01-614-7409
5935-01-614-7409 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-614-7409
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-614-7409
- US Air Force (FXGX)
- Effective Date:
- 1 Dec 2012
Approved Sources 5935-01-614-7409
- Part Number
- Manufacturer
- Status
- 110-13-628-41-001000
- Manufacturer
- 3N087 - Mill-Max Mfg Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-614-7409
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

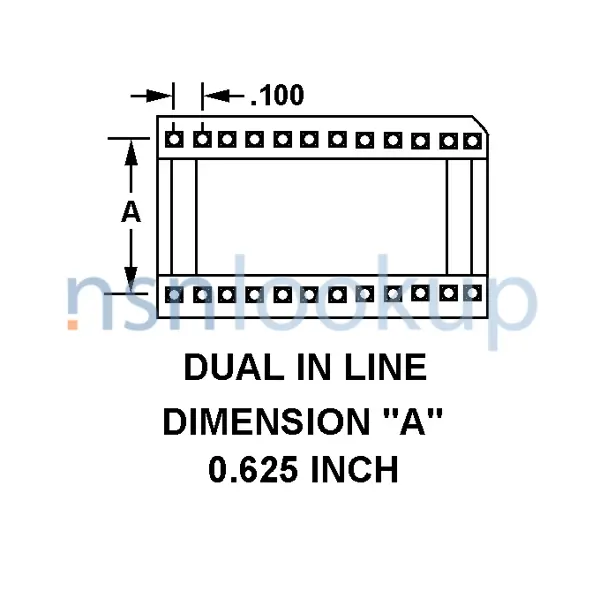

- Contact Position Arrangement Style [CRPY]
- Dual In-Line
- Accommodated Contact Quantity [AFRL]
- 28
- Body Style [AAQL]
- Top Mount W/Studs
- Overall Length [ABHP]
- 1.40 Inches Nominal
- Overall Height [ABKW]
- 0.29 Inches Nominal
- Overall Width [ABMK]
- 0.70 Inches Nominal
- Projection Length Below Mounting Surface [AKXC]
- 0.125 Inches Nominal
- Body Material [AAFZ]
- Beryllium Copper
- Terminal Type And Quantity [TTQY]
- 2 Pin
- Mounting Method [AXGY]
- Press Fit
- Mounting Hole Diameter [ABTB]
- 0.020 Inches Nominal
- Precious Material [PRMT]
- Gold
- Part Name Assigned By Controlling Agency [CXCY]
- Dip Solder Tail
