5935-01-609-5673
Electrical Connector Jackscrew
5935016095673 016095673 40B156802
A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like. View more Electrical Connector Jackscrew
May 2023
2
Marketplace 5935-01-609-5673
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-609-5673 1+ Documents (More...)
Updated Every Day 5935-01-609-5673 RQST NE Related Documents 5935-01-609-5673 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-609-5673 Electrical Connector Jackscrew 5935016095673
Restrictions 5935-01-609-5673
5935-01-609-5673 is a Electrical Connector Jackscrew that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-609-5673
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-609-5673
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2012
Approved Sources 5935-01-609-5673
- Part Number
- Manufacturer
- Status
- 40B156802
- Manufacturer
- 1BU04 - Ion Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-609-5673
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- End Item Identification [AGAV]
- Aircraft, B-1B
- Material [MATT]
- Aluminum
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Hole
- Part Name Assigned By Controlling Agency [CXCY]
- Jackscrew Receptacle
- Overall Diameter [ADAV]
- 1.000 Inches Nominal
- Overall Length [ABHP]
- 1.750 Inches Nominal
- Special Features [FEAT]
- Contains 2 Threaded Mounting Holes 0.190-32 Unf-2B, Center Hole Dia. 0.562 Inch., Height Is 0.875, Material: 6061T6 Al, Chemical Conversion Coat Per Mil-C-5541E, Cl 1A

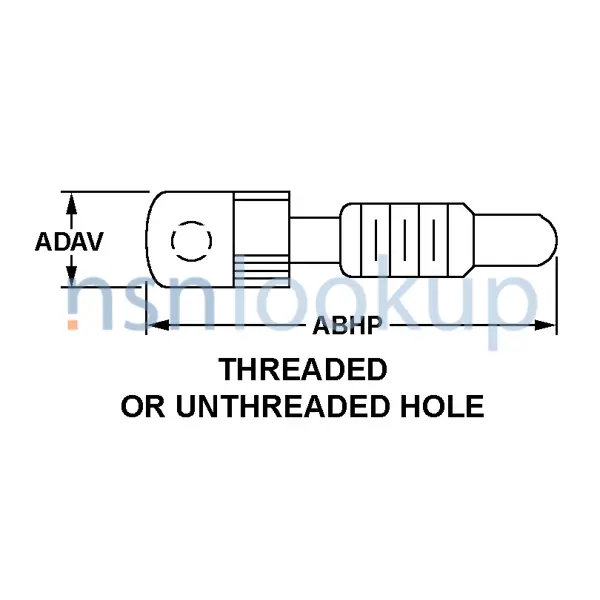

- Style Designator [STYL]
- Threaded Or Unthreaded Hole
- Surface Treatment [SFTT]
- Paint
Weapon Systems (WSDC) 5935-01-609-5673
DLA Procurement Analysis 5935-01-609-5673
- Last Stock Position:
- 15 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-01-609-5673
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Nov 2019
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 5935-01-609-5673
Freight Information 5935-01-609-5673
5935-01-609-5673 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-609-5673 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-609-5673 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-609-5673 is not classified as a special type of cargo when transported by water. 5935-01-609-5673 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-01-609-5673 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
