5935-01-605-3653
Electrical Connector Guide
5935016053653 016053653 4V10475-101A
An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like. View more Electrical Connector Guide
November 2023
6
Marketplace 5935-01-605-3653
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-605-3653 1+ Documents (More...)
Updated Every Day 5935-01-605-3653 RQST NE Related Documents 5935-01-605-3653 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-605-3653 Electrical Connector Guide 5935016053653
Restrictions 5935-01-605-3653
5935-01-605-3653 is a Electrical Connector Guide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-605-3653
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-605-3653
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2012
Approved Sources 5935-01-605-3653
- Part Number
- Manufacturer
- Status
- 4V10475-101A
- Manufacturer
- 98897 - Lockheed Martin Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-605-3653
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- End Item Identification [AGAV]
- C-5 Amp Comm
- Material [MATT]
- Steel Corrosion Resisting
- Mounting Facility Type And Quantity [AXHR]
- 4 Screw
- Overall Length [ABHP]
- 1.15 Inches Nominal
- Width Across Flats [ASDB]
- 0.312 Inches Nominal

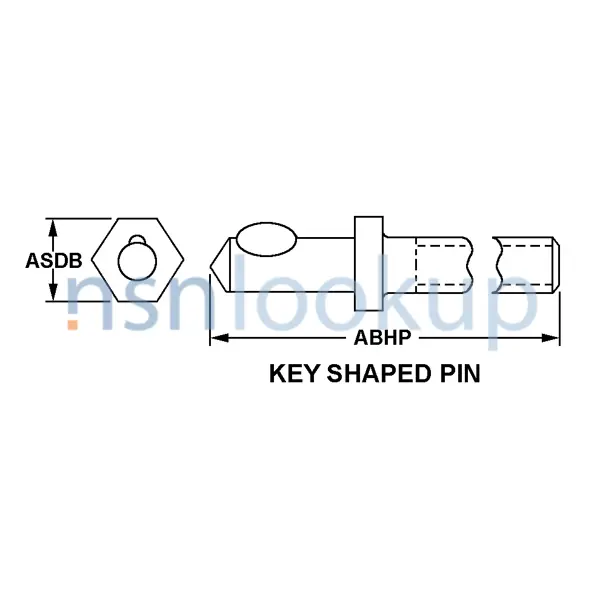

- Style Designator [STYL]
- Key Shaped Pin
Weapon Systems (WSDC) 5935-01-605-3653
DLA Procurement Analysis 5935-01-605-3653
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-01-605-3653
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Jan 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 5935-01-605-3653
Freight Information 5935-01-605-3653
5935-01-605-3653 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-605-3653 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-605-3653 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-605-3653 is not classified as a special type of cargo when transported by water. 5935-01-605-3653 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5935-01-605-3653 3 Records
Contracting Technical Data File (CTDF) 5935-01-605-3653 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
