5935-01-604-0735
Plug-In Electronic Components Socket
5935016040735 016040735 RSN116890
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
1
Marketplace 5935-01-604-0735
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-604-0735 1+ Documents (More...)
5935/us 5935-01-604-0735 Plug-In Electronic Components Socket 5935-01-604-0735 RQST NE Updated Every
Day 5935-01-604-0735 RQST Updated Every Day 5935-01-604-0735 RQST 5935/us 5935-01-604-0735 Plug-In Electronic
Restrictions 5935-01-604-0735
5935-01-604-0735 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-604-0735
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-604-0735
- US Navy (N9BN)
- Effective Date:
- 1 Mar 2012
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Oct 2014
Approved Sources 5935-01-604-0735
- Part Number
- Manufacturer
- Status
- RSN116890
- Manufacturer
- 58982 - Amphenol Pcd Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-604-0735
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

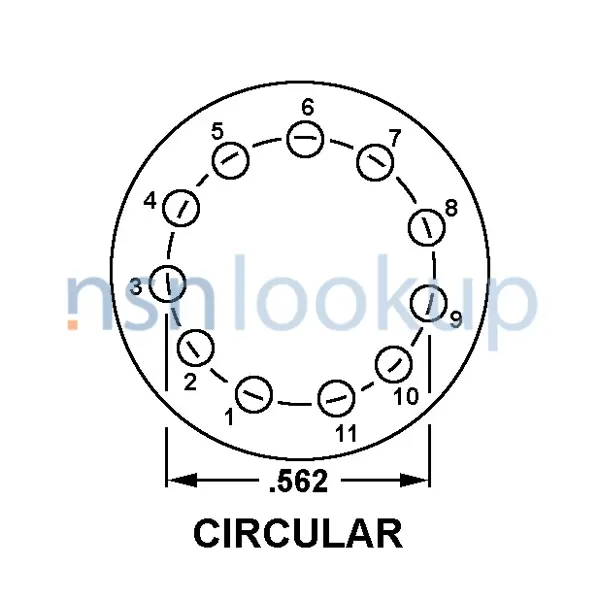

- Contact Position Arrangement Style [CRPY]
- Circular
- Accommodated Contact Quantity [AFRL]
- 16
- Contact Maximum Current Rating In Amps [AFRC]
- 10.0
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Gold
- Body Style [AAQL]
- Top Or Bottom Mount W/Molded Saddle And Bushing
- Overall Length [ABHP]
- 2.250 Inches Nominal
- Overall Width [ABMK]
- 1.500 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 15 Solder Well
- Mounting Type For Which Designed [BCNX]
- Chassis
- Special Features [FEAT]
- 4 Pole/10 Amp Solder Cup Termination; Ms Relay; Operating Range Temperature: -65? To 125?C; Military Relay Ms25327; Dielectric Withstanding Voltage: 1500 Vrms At Sea Level; 500Vrms At 80,000 Feet
- End Item Identification [AGAV]
- An/Sqq-89; Pcc: T3x
- Precious Material [PRMT]
- Gold
- Part Name Assigned By Controlling Agency [CXCY]
- Non-Environmental Relay Sockets Solder Cup Terminal; Socket Relay
