5935-01-597-6626
Connector Adapter
5935015976626 015976626 DG90H15MF1 PS156-101501-01 PL4694000-602-17
An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction.It is not designed for permanent attachment to a cable, cord, coaxial line, or wire.The physical shape of an electrical connector should not be the determining factor of its name.Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR.Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER.For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT. View more Connector Adapter
November 2023
3
Marketplace 5935-01-597-6626
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-597-6626 3+ Documents (More...)
RQST NE Updated Every Day 5935-01-597-6626 RQST Updated Every Day 5935-01-597-6626 RQST NE Related Documents
5935-01-597-6626 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-597-6626
Connector Adapter 5935015976626 015976626 day Upgrade your Account Upgrade 5935-01-597-6626Connector
Adapter5935015976626 015976626 DG90H15MF1 PS156 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-597-6626
/fsg-15/fsc-1560/us
Connector Adapter 5935015976626 015976626 Upgrade your Account Upgrade 5935-01-597-6626Connector
Adapter5935015976626 015976626 DG90H15MF1 PS156-101501 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01
Restrictions 5935-01-597-6626
5935-01-597-6626 is a Connector Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-597-6626
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-597-6626
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2011
- Supplementary Collaborators:
- HD
- Canada (ZC01)
- Effective Date:
- 1 Oct 2012
Approved Sources 5935-01-597-6626
- Part Number
- Manufacturer
- Status
- DG90H15MF1
- Manufacturer
- 43321 - Infinite Electronics International, (Active)
- Primary Buy
- Primary Buy
- PS156-101501-01
- L4491 - L3harris Mapps Inc (Active)
- Secondary Buy
- Secondary Buy
- PL4694000-602-17
- 94756 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-01-597-6626
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

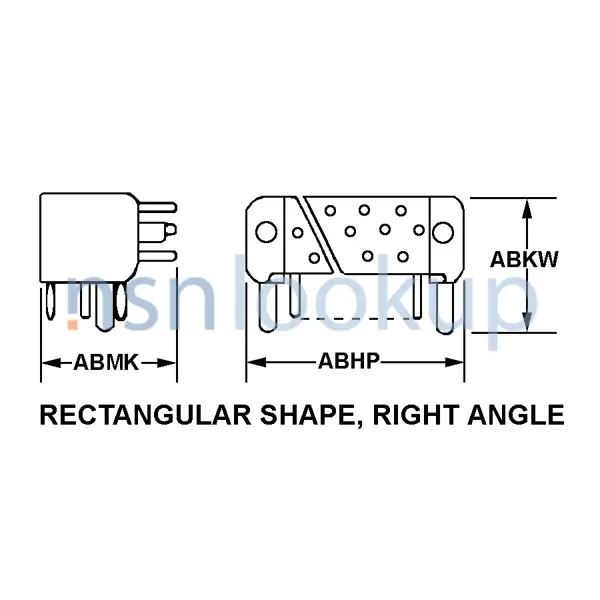

- Body Style [AAQL]
- Rectangular Shape, Right Angle
- Connector Locking Method [AFRV]
- Jackscrew And Jackscrew-Socket
- Contact Position Arrangement Style [AFQX]
- 15 All Mating Ends
- Contact Surface Treatment [CQYH]
- Gold All Mating Ends Single Contact Grouping
- End Item Identification [AGAV]
- Seawolf Class Ssn
- Mating End Quantity [AFQW]
- 2
- Nominal Thread Size [CQJX]
- 0.112 Inches
- Included Contact Quantity [CXCG]
- 15 All Mating Ends Single Contact Grouping
- Included Contact Type [CXCL]
- Round Pin All Mating Ends Single Contact Grouping
- Polarization Method [AFRN]
- Mating End And Mating End
- Precious Material And Location [PMLC]
- Contact Plating Gold
- Precious Material [PRMT]
- Gold
- Shell Material [CSPT]
- Plastic
- Overall Height [ABKW]
- 1.000 Inches Nominal
- Overall Length [ABHP]
- 1.300 Inches Nominal
- Overall Width [ABMK]
- 1.000 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Low Profile, Right Angle Adapter
- Special Features [FEAT]
- Has Emi And Rfi Shielding.
- Thread Series Designator [THSD]
- Unc
- Threaded Device Type [AFQR]
- Mounting Stud
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
