5935-01-594-7644
Electrical Receptacle Connector
5935015947644 015947644 RM322-059-211-5500
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
May 2023
3
Marketplace 5935-01-594-7644
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-594-7644 1+ Documents (More...)
5935-01-594-7644 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-594-7644
Electrical Receptacle Connector 015947644 5935-01-594-7644 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 5935-01-594-7644
5935-01-594-7644 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-594-7644
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-594-7644
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2011
Approved Sources 5935-01-594-7644
- Part Number
- Manufacturer
- Status
- RM322-059-211-5500
- Manufacturer
- 0URH0 - Airborn Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-594-7644
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

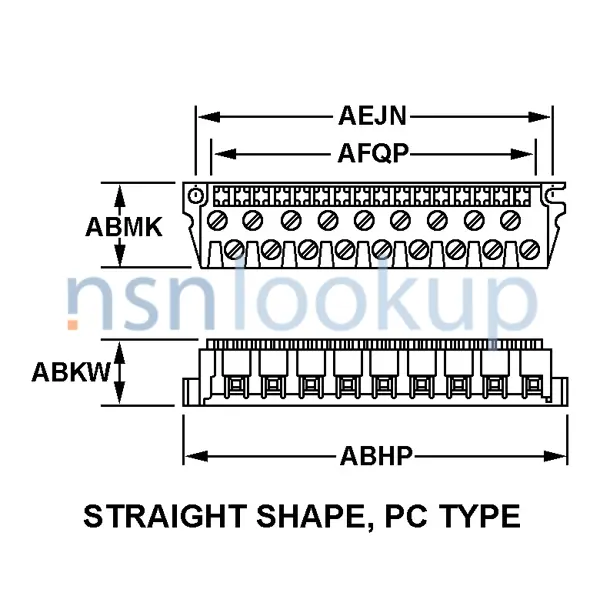

- Body Style [AAQL]
- Straight Shape, Pc Type
- Overall Length [ABHP]
- 2.205 Inches Nominal
- Overall Height [ABKW]
- 0.275 Inches Nominal
- Overall Width [ABMK]
- 0.300 Inches Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 2.035 Inches Nominal
- Board Accommodated Length [AFQP]
- 1.675 Inches Nominal Single Board
- Mating End Quantity [AFQW]
- 1
- Contact Position Arrangement Style [AFQX]
- 3 Rows Of Contacts Non-Inserted Board Single Mating End
- Special Features [FEAT]
- Socket,Straight,Dip Solder,.140 Inch X .020 Dia Terminal
Similar Supply Items to 5935-01-594-7644
Freight Information 5935-01-594-7644
5935-01-594-7644 has freight characteristics managed by the Republic of Korea.. 5935-01-594-7644 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
