5935-01-583-8470
Electrical Receptacle Connector
5935015838470 015838470 SAE-AS50151 MS3102E32-1S MS3102
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
August 2025
3
Marketplace 5935-01-583-8470
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-583-8470 5+ Documents (More...)

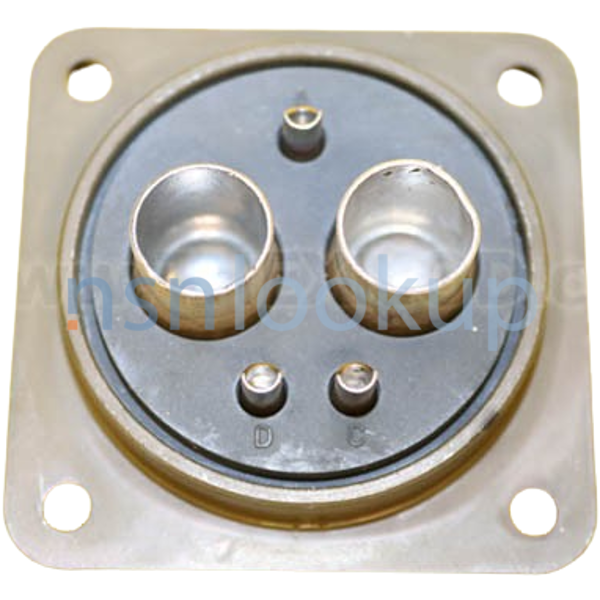

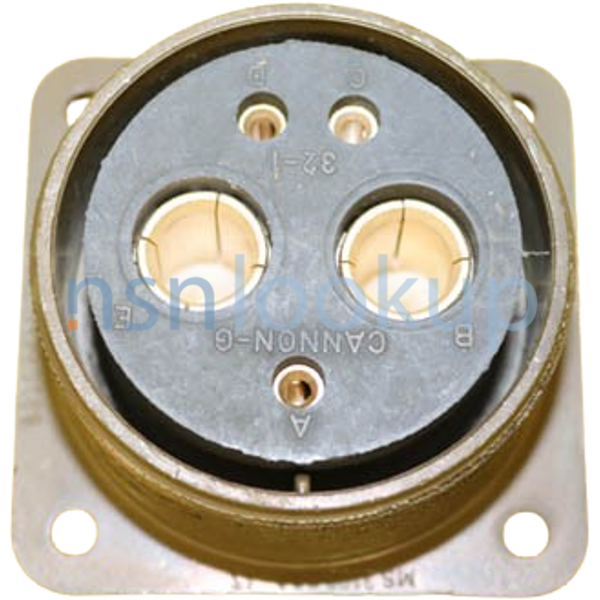

Photo 1/3 5935-01-583-8470 Photo 2/3 NSN 5935-01-583-8470 (Identification) 3/3 - - - 1.
5935-01-583-8470 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-583-8470
MS3102E32-1S CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS Request Quotation Subscribe to View Vendor Details
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-583-8470 Electrical Receptacle Connector 015838470
MS3102E32-1S CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS Request Quotation MIL-C-5015 CONNECTOR,RECEPTACLE
MS3102E32-1S CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS Request Quotation Subscribe to View Vendor Details
MS3102 CONNECTOR,RECEPTACLE,ELECTRICAL 50 EA NS Request Quotation Updated Every Day 5935-01-525-3166
Electrical Receptacle Connector 015838470 Upgrade your Account Upgrade 5935-01-583-8470Electrical
MS3102-20-15P MS3102K20-15P An electrical fitting with electrical contacts constructed to be affixed
CONNECTOR,RECEPTACLE,ELECTRICAL contacts, constructed to MS3406D14S-5D MIL-C-5015 SAE AS50151 https
Restrictions 5935-01-583-8470
5935-01-583-8470 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-583-8470
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-583-8470
- Germany (ZG01)
- Effective Date:
- 1 Apr 2010
Approved Sources 5935-01-583-8470
- Part Number
- Manufacturer
- Status
- SAE-AS50151
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- MS3102E32-1S
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- MS3102
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS3102E32-1S
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-583-8470
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 0.875 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 1.750 Inches Nominal
- Contact Position Arrangement Style [AFQX]
- 32-1 Single Mating End
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 1.750 Inches Nominal
- Body Style [AAQL]
- Straight Shape, External Coupling
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Size [CQJX]
- 2.000 Inches
- Included Contact Quantity [CXCG]
- 1 Single Mating End 1St Contact Grouping
- Included Contact Quantity [CXCG]
- 2 Single Mating End 2Nd Contact Grouping
- Included Contact Quantity [CXCG]
- 2 Single Mating End 3Rd Contact Grouping
- Overall Height [ABKW]
- 2.250 Inches Nominal
- Overall Length [ABHP]
- 1.930 Inches Nominal
- Overall Width [ABMK]
- 2.250 Inches Nominal
- Thread Series Designator [THSD]
- Uns
- Thread Quantity Per Inch [CMLP]
- 18
- Threaded Device Type [AFQR]
- Coupling Facility
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.173 Inches Nominal
- Terminal Location [CQTM]
- Back Single Mating End All Contact Groupings
- Terminal Type [CSCF]
- Solder Well Single Mating End All Contact Groupings
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
Similar Supply Items to 5935-01-583-8470
Freight Information 5935-01-583-8470
5935-01-583-8470 has freight characteristics.. 5935-01-583-8470 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
