5935-01-550-6581
Electrical Receptacle Connector
5935015506581 015506581 NAC-3-MPA
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
May 2023
1
Marketplace 5935-01-550-6581
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-550-6581 3+ Documents (More...)
5935-01-550-6581 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-550-6581
Electrical Receptacle Connector 015506581 RQST NE Updated Every Day 5935-01-550-6581 RQST Updated Every
Electrical Receptacle Connector 015506581 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-550-6581
Electrical Receptacle Connector 015506581 Sound Recorder-Reproducer 5835015244731 ElementEnd Item
www.nsnlookup.com /fsg-58/fsc-5835/us 5835-01-524-4731 Sound Recorder-Reproducer 5835015244731 -5935/us 5935-01-550-6581
Restrictions 5935-01-550-6581
5935-01-550-6581 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-550-6581
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-550-6581
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2007
- Supplementary Collaborators:
- HD
Approved Sources 5935-01-550-6581
- Part Number
- Manufacturer
- Status
- NAC-3-MPA
- Manufacturer
- 0FMA6 - Neutrik Americas, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-550-6581
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

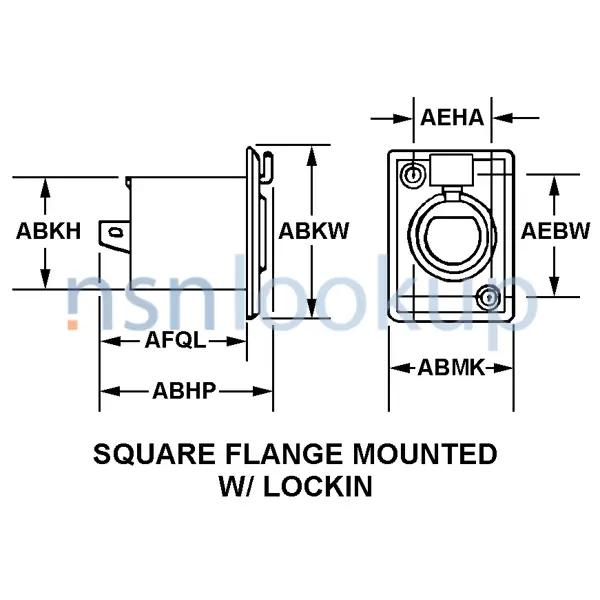

- Body Style [AAQL]
- Square Flange Mounted W/Lockin
- Overall Length [ABHP]
- 1.465 Inches Nominal
- Bushing Diameter [ABKH]
- 0.748 Inches Nominal
- Overall Height [ABKW]
- 1.220 Inches Nominal
- Overall Width [ABMK]
- 1.024 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 0.945 Inches Nominal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 0.748 Inches Nominal
- Distance From Mounting Shoulder To Rear Face [AFQL]
- 1.190 Inches Nominal
- Mating End Quantity [AFQW]
- 1
- Included Contact Quantity [CXCG]
- 3 Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Screw Single Mating End Single Contact Grouping
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Special Features [FEAT]
- Chassis Mount
- End Item Identification [AGAV]
- M2.1-A1236-A Digital Message Repeater
