5935-01-516-2862
Electrical Receptacle Connector
5935015162862 015162862 SAE-AS50151 MS3451L22-2PX MS3451
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
May 2023
1
Marketplace 5935-01-516-2862
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-516-2862 5+ Documents (More...)
5935-01-516-2862 BUY NE FedMall Updated Every Day 5935-01-516-2862 RQST NE Updated Every Day 5935-01
-516-2862 RQST Updated Every Day 5935-01-516-2862 RQST NE Related Documents 5935-01-516-2862 5+ Documents
MS3451L20-4S MS3451 An electrical fitting with electrical contacts constructed to be affixed to the
MS3451 CONNECTOR,RECEPTACLE,ELECTRICAL 3 EA NS Request Quotation Updated Every Day 5935-01-464-5126 RQST
MS3451L28-12S SAE-AS34511 MS3451 An electrical fitting with electrical contacts constructed to be affixed
your Account Upgrade 5935-01-630-2706Electrical https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-516-2862
MS3451L28-9S SAE-AS34511 MS3451 An electrical fitting with electrical contacts constructed to be affixed
your Account Upgrade 5935-01-629-9303Electrical https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-516-2862
MS3451L16-10P SAE-AS34511 MS3451 An electrical fitting with electrical contacts constructed to be affixed
day Upgrade your Account Upgrade 5935-01-700-0101Electrical Plug Connector5935017000101 017000101 SAE-AS50151
Restrictions 5935-01-516-2862
5935-01-516-2862 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-516-2862
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-516-2862
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDJB
Approved Sources 5935-01-516-2862
- Part Number
- Manufacturer
- Status
- SAE-AS50151
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- MS3451L22-2PX
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- MS3451L22-2PX
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS3451
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-516-2862
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Connector Locking Method [AFRV]
- Externally Threaded Shell
- Contact Position Arrangement Style [AFQX]
- 22-2 Single Mating End
- Contact Removability [AFQZ]
- Removable Single Mating End Single Contact Grouping
- End Item Identification [AGAV]
- Virginia Class Submarine, Ssn-774
- Features Provided [CBBL]
- Color Band Engagement Indicator
- Body Style [AAQL]
- Straight Shape
- Mating End Quantity [AFQW]
- 1
- Included Contact Quantity [CXCG]
- 3 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Pin Single Mating End Single Contact Grouping
- Insert Position In Deg [AFRP]
- 145.0
- Polarization Method [AFRN]
- Key, Multiple Key Groove
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment [CSWM]
- Nickel

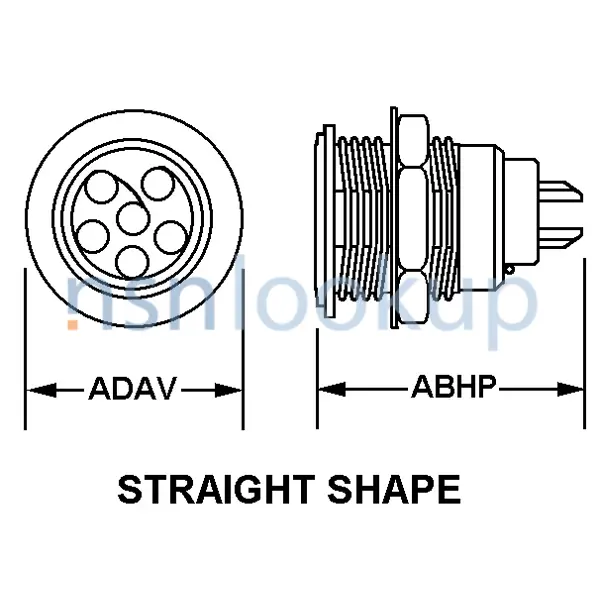

- Overall Diameter [ADAV]
- 1.568 Inches Minimum And 1.630 Inches Maximum
- Overall Length [ABHP]
- 2.500 Inches Maximum
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Crimp Single Mating End Single Contact Grouping
