5935-01-500-4226
Electrical Plug Connector
5935015004226 015004226 DGA00-B17-EL17 GA801PG17A52S GA801PG
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
May 2023
1
Marketplace 5935-01-500-4226
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-500-4226 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-01-500-4226 RQST NE Updated Every Day 5935-01-500-4226 RQST
Updated Every Day 5935-01-500-4226 RQST NE Related Documents 5935-01-500-4226 5+ Documents ( More...
Electrical Plug Connector 5935015004226 Roller Chain 3020010102682010102682,EL17 AMSC H IMC Z IMCACTY
Electrical Plug Connector 5935015004226 Upgrade your Account Upgrade 5935-01-500-4226Electrical
Plug Connector5935015004226 015004226 DGA00-B17-EL17 https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020
Restrictions 5935-01-500-4226
5935-01-500-4226 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-500-4226
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-500-4226
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
Approved Sources 5935-01-500-4226
- Part Number
- Manufacturer
- Status
- DGA00-B17-EL17
- Manufacturer
- 11139 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- GA801PG17A52S
- 26512 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
- GA801PG
- 26512 - Northrop Grumman Systems Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5935-01-500-4226
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Connector Locking Method [AFRV]
- Bayonet Pin
- Contact Position Arrangement Style [AFQX]
- 17-26 Single Mating End

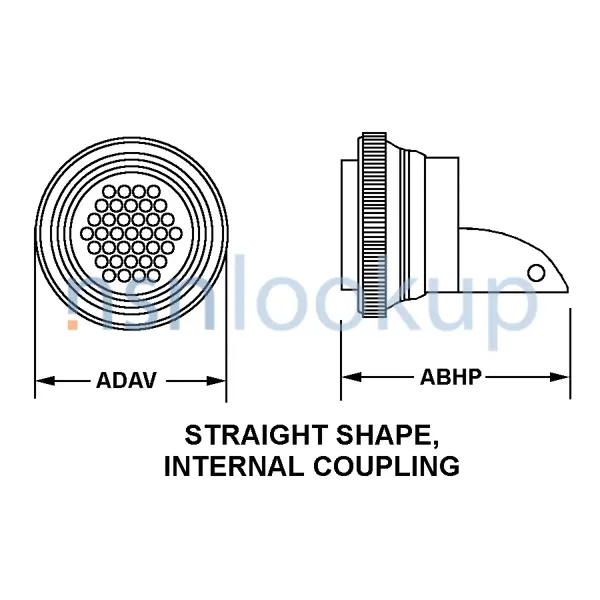

- Body Style [AAQL]
- Straight Shape, Internal Coupling
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Size [CQJX]
- 1.000 Inches
- Operating Temp Rating [AWTN]
- -65.0 Deg Celsius Minimum And 175.0 Deg Celsius Maximum
- Included Contact Quantity [CXCG]
- 55 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Socket Single Mating End Single Contact Grouping
- Overall Diameter [ADAV]
- 1.145 Inches Minimum And 1.175 Inches Maximum
- Overall Length [ABHP]
- 1.650 Inches Minimum And 1.690 Inches Maximum
- Special Features [FEAT]
- Body Is Non-Metallic Composite
- Thread Series Designator [THSD]
- Unef
- Thread Quantity Per Inch [CMLP]
- 28
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
DLA Procurement Analysis 5935-01-500-4226
Management Data 5935-01-500-4226
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-01-500-4226
Freight Information 5935-01-500-4226
5935-01-500-4226 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-500-4226 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-500-4226 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-500-4226 is not classified as a special type of cargo when transported by water. 5935-01-500-4226 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-01-500-4226 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
