5935-01-489-1716

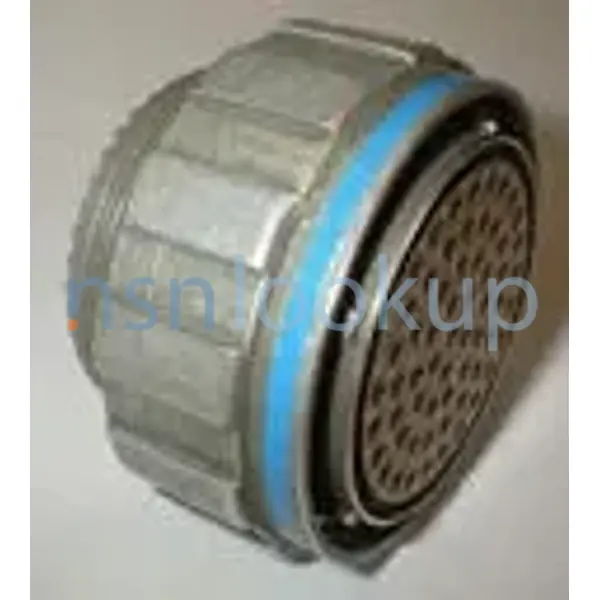

Electrical Plug Connector
5935014891716 014891716 D38999/26MD35SA
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
May 2023
4
Marketplace 5935-01-489-1716
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-489-1716 5+ Documents (More...)
RQST NE Updated Every Day 5935-01-489-1716 RQST Updated Every Day 5935-01-489-1716 RQST NE Related Documents
5935-01-489-1716 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-489-1716
552-7896 5935-00-936-7436 5935-00-404-2088 5935-00-090-3818 5935-00-139-2246 5935-01-474-6964 5935-01-489-1716
552-7896 5935-00-936-7436 5935-00-404-2088 5935-00-090-3818 5935-00-139-2246 5935-01-474-6964 5935-01-489-1716
Restrictions 5935-01-489-1716
5935-01-489-1716 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-489-1716
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-489-1716
- US Air Force (FLL5)
- Effective Date:
- 1 Sep 2001
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2003
Approved Sources 5935-01-489-1716
- Part Number
- Manufacturer
- Status
- D38999/26MD35SA
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
Datasheet 5935-01-489-1716
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- End Item Identification [AGAV]
- F22
- Contact Position Arrangement Style [AFQX]
- 15-35 Single Mating End
- Body Style [AAQL]
- Straight Shape, Internal Coupling
- Mating End Quantity [AFQW]
- 1
- Included Contact Quantity [CXCG]
- 37 Single Mating End All Contact Groupings
- Overall Diameter [ADAV]
- 1.266 Inches Nominal
- Overall Length [ABHP]
- 1.234 Inches Nominal
- Terminal Location [CQTM]
- Back Single Mating End All Contact Groupings
- Terminal Type [CSCF]
- Pin Single Mating End All Contact Groupings
Management Data 5935-01-489-1716
Similar Supply Items to 5935-01-489-1716
Freight Information 5935-01-489-1716
5935-01-489-1716 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-489-1716 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-489-1716 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 743 for ocean manifesting and military sealift. 5935-01-489-1716 is not classified as a special type of cargo when transported by water. 5935-01-489-1716 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
