5935-01-486-5585
Electrical Connector Coupling Nut
5935014865585 014865585 610HS011NF11
An item with internal threads and an integral seat, specifically designed to hold together mated electrical connector components. View more Electrical Connector Coupling Nut
May 2023
1
Marketplace 5935-01-486-5585
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-486-5585 5+ Documents (More...)
) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-486-5585 Electrical Connector Coupling Nut 014865585
) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-486-5585 Electrical Connector Coupling Nut 014865585
5935-14-316- https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-486-5585 Electrical Connector Coupling
Nut 014865585 5585 Electrical Connector Coupling Nut 014865585 https//www.nsnlookup.com /fsg-59/fsc-
Electrical Connector Coupling Nut 014865585 554-1475 Connector Coupling Nut 014865585 5935- https
Electrical Connector Coupling Nut 015551526 5935-14-316-3991 5935-23-114-1168 5935-01-555-1526 us 5935-01-486-5585
Electrical Connector Coupling Nut 014865585 fsg-59/fsc-5935/us 5935-01-554-1475 https//www.nsnlookup.com
/fsg-59/fsc-5935/us 5935-01-486-5585 Electrical Connector Coupling Nut 014865585 fr 5935-14-316-3991
Electrical Connector Coupling Nut 014865585 59/fsc-5935/us 5935-01-555-1526 Electrical Connector
Coupling Nut 015551526 5935-14-316-3991 5935-23-114-1168 5935-01-486-5585 Electrical Connector Coupling
Restrictions 5935-01-486-5585
5935-01-486-5585 is a Electrical Connector Coupling Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5935-01-486-5585
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
Approved Sources 5935-01-486-5585
- Part Number
- Manufacturer
- Status
- 610HS011NF11
- Manufacturer
- 06324 - Glenair, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-486-5585
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Material [MATT]
- Aluminum Overall
- Nominal Thread Size [CQJX]
- 15.0 Millimeters

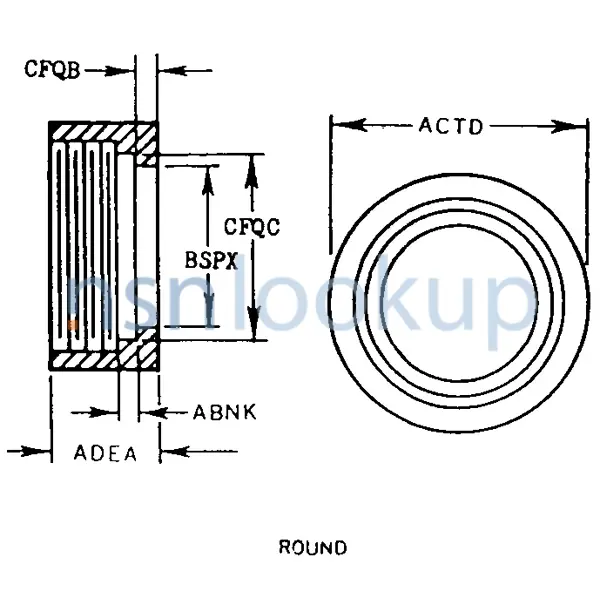

- Nut Diameter [ACTD]
- 0.820 Inches Maximum
- Nut Style [ACTA]
- Round
- Nut Height [ADEA]
- 0.710 Inches Maximum
- Smallest Inside Diameter [BSPX]
- 0.375 Inches Maximum
- Special Features [FEAT]
- Knurled Finish, Olive Drab In Color
- Thread Series [BZRR]
- M
- Thread Pitch In Millimeters [CQQR]
- 1.00
- Thread Tolerance Class [CTTC]
- 6H Internal
- Supplementary Features [SUPP]
- 1000 Hour Corrosion Resistant
- Surface Treatment [SFTT]
- Cadmium Overall And Nickel Overall
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5935-01-486-5585
DLA Procurement Analysis 5935-01-486-5585
Management Data 5935-01-486-5585
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-01-486-5585
Freight Information 5935-01-486-5585
5935-01-486-5585 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105200. A Sub NMFC of X. It has a NMFC Description of FITTINGS CABLE/CHAIN/ROPE I/S. 5935-01-486-5585 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54160 which rates the freight between FCL and LCL. 5935-01-486-5585 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-01-486-5585 is not classified as a special type of cargo when transported by water. 5935-01-486-5585 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-01-486-5585
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 0.8" H x 0.8" W x 0.7" L
- --
- --
- Physical Protection
- Any Suitable Process
- 0.8" H x 0.8" W x 0.7" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5935-01-486-5585 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
