5935-01-484-7049
Plug-In Electronic Components Socket
5935014847049 014847049 SREL210CV
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
3
Marketplace 5935-01-484-7049
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-484-7049 3+ Documents (More...)
SREL210CV SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS Request Quotation Updated Every Day 5935-01-484
Documents 5935-01-484-7049 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
SREL210CV SOCKET,PLUG-IN ELECTRONIC COMPONENTS 1 EA NS Request Quotation Updated Every Day 5935-01-484
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-484-7049 Plug-In Electronic Components Socket your
https https//www.nsnlookup.com /fsg-61/fsc-6150/fr 6150-14-497-1647 Support 6150144971647 144971647,SREL210CV
. ) https//www.nsnlookup.com /fsg-61/fsc-6150/fr 6150-14-497-1647 Support 6150144971647144971647,SREL210CV
Restrictions 5935-01-484-7049
5935-01-484-7049 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-484-7049
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-484-7049
- Norway (ZT01)
- Effective Date:
- 1 May 2001
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2009
Approved Sources 5935-01-484-7049
- Part Number
- Manufacturer
- Status
- SREL210CV
- Manufacturer
- 99699 - Dri Relays Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-484-7049
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

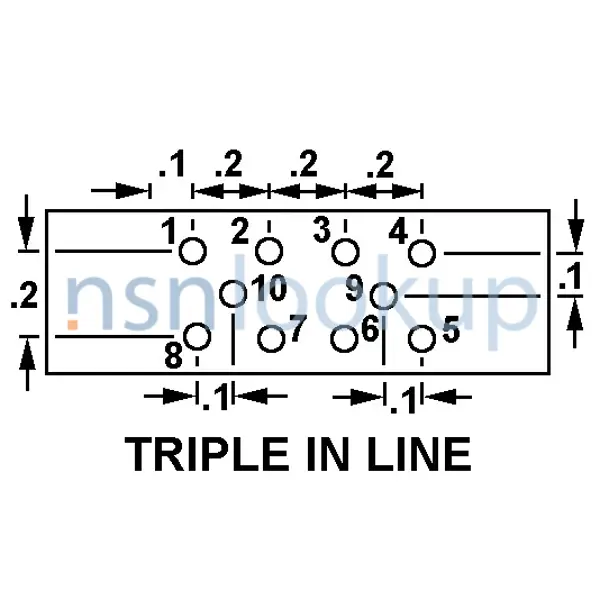

- Contact Position Arrangement Style [CRPY]
- Triple In Line
- Accommodated Contact Quantity [AFRL]
- 10
- Contact Maximum Current Rating In Amps [AFRC]
- 10.0
- Contact Material [AFRG]
- Copper
- Contact Surface Treatment [AFRH]
- Gold
- Body Style [AAQL]
- Top Mount W/Studs
- Overall Length [ABHP]
- 1.406 Inches Nominal
- Overall Height [ABKW]
- 1.075 Inches Nominal
- Overall Width [ABMK]
- 0.551 Inches Nominal
- Projection Length Below Mounting Surface [AKXC]
- 0.217 Inches Nominal
- Body Material [AAFZ]
- Steel
- Terminal Type And Quantity [TTQY]
- 10 Pin
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Body Through Hole
- Mounting Hole Style [AEVB]
- Rectangular
- Body Mounting Hole Accommodation Length [ADAJ]
- 1.102 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 0.551 Inches Nominal
- Polarization Type [AKWN]
- Off Center Hole
- Precious Material [PRMT]
- Gold
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
Similar Supply Items to 5935-01-484-7049
Freight Information 5935-01-484-7049
5935-01-484-7049 has freight characteristics.. 5935-01-484-7049 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
