5935-01-474-6964

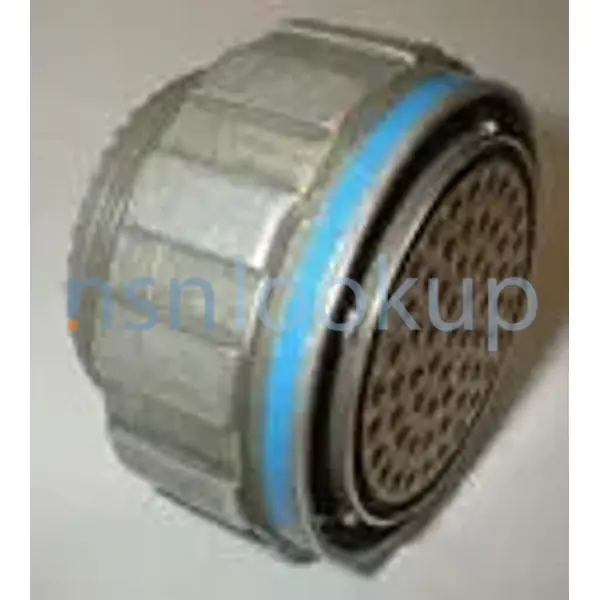

Electrical Plug Connector
5935014746964 014746964 MIL-DTL-38999/26 D38999/26JG41PA
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
May 2023
1
Marketplace 5935-01-474-6964
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-474-6964 5+ Documents (More...)
D38999/26JG41PA CONNECTOR,PLUG,ELECTRICAL 129 EA NS Request Quotation Updated Every Day 5935-01-474-6964
RQST NE Updated Every Day 5935-01-474-6964 RQST Updated Every Day 5935-01-474-6964 RQST NE Related Documents
Restrictions 5935-01-474-6964
5935-01-474-6964 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-474-6964
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-474-6964
- United Kingdom (ZK01)
- Effective Date:
- 1 May 2000
Approved Sources 5935-01-474-6964
- Part Number
- Manufacturer
- Status
- D38999/26JG41PA
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-38999/26
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5935-01-474-6964
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Contact Position Arrangement Style [AFQX]
- 21-41 Single Mating End
- Contact Removability [AFQZ]
- Removable Single Mating End Single Contact Grouping
- Environmental Protection [ADZC]
- Corrosion Resistant
- Body Style [AAQL]
- Straight Shape, Internal Coupling
- Mating End Quantity [AFQW]
- 1
- Included Contact Quantity [CXCG]
- 41 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Pin Single Mating End Single Contact Grouping
- Insert Position In Deg [AFRP]
- 135.0 And 170.0 And 200.0 And 310.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Overall Diameter [ADAV]
- 41.0 Millimeters Maximum
- Overall Length [ABHP]
- 31.0 Millimeters Maximum
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Crimp Single Mating End Single Contact Grouping
DLA Procurement Analysis 5935-01-474-6964
Management Data 5935-01-474-6964
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-01-474-6964
Freight Information 5935-01-474-6964
5935-01-474-6964 has freight characteristics managed by the Bureau of Engraving and Printing.. 5935-01-474-6964 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Contracting Technical Data File (CTDF) 5935-01-474-6964 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
