5935-01-473-2104
Electrical Receptacle Connector
5935014732104 014732104 2405S17H000
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
May 2023
3
Marketplace 5935-01-473-2104
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-473-2104 1+ Documents (More...)
5935-01-473-2104 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-473-2104
Electrical Receptacle Connector 014732104 RQST NE Updated Every Day 5935-01-473-2104 RQST Updated Every
Restrictions 5935-01-473-2104
5935-01-473-2104 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-473-2104
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-473-2104
- France (ZF01)
- Effective Date:
- 1 Mar 2000
Approved Sources 5935-01-473-2104
- Part Number
- Manufacturer
- Status
- 2405S17H000
- Manufacturer
- 0V541 - Leoco Usa Corp (Active)
- Primary Buy
- Primary Buy
- 2405S17H000
- FAFL4 - Plastech (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-01-473-2104
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

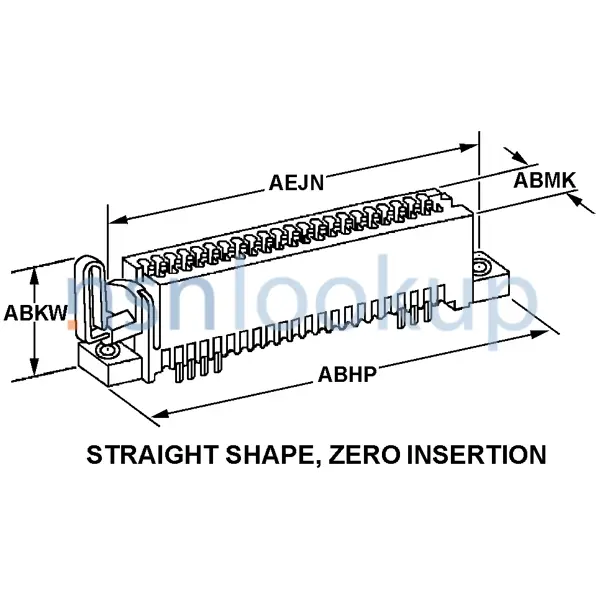

- Body Style [AAQL]
- Straight Shape, Zero Insertion
- Overall Length [ABHP]
- 43.2 Millimeters Nominal
- Overall Height [ABKW]
- 8.0 Millimeters Nominal
- Overall Width [ABMK]
- 4.8 Millimeters Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 40.6 Millimeters Nominal
- Mating End Quantity [AFQW]
- 1
- Contact Position Arrangement Style [AFQX]
- 1 Row Of Contacts Inserted Board Single Mating End
- Included Contact Quantity [CXCG]
- 17 Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Printed Circuit Single Mating End Single Contact Grouping
- Terminal Location [CQTM]
- Side Single Mating End Single Contact Grouping
Similar Supply Items to 5935-01-473-2104
Freight Information 5935-01-473-2104
5935-01-473-2104 has freight characteristics.. 5935-01-473-2104 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
