5935-01-471-9453
Electrical Connector Shell
5935014719453 014719453 30-276-WD5PA
The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR. View more Electrical Connector Shell
June 2023
3
Marketplace 5935-01-471-9453
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-471-9453 1+ Documents (More...)
Updated Every Day 5935-01-471-9453 RQST NE Related Documents 5935-01-471-9453 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-471-9453 Electrical Connector Shell 5935014719453
Restrictions 5935-01-471-9453
5935-01-471-9453 is a Electrical Connector Shell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-471-9453
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-471-9453
- US Air Force (FGGX)
- Effective Date:
- 1 May 2010
- Former MOE Rule:
- FGKE
- US Navy (N9BN)
- Effective Date:
- 1 May 2010
- Supplementary Collaborators:
- KE
Approved Sources 5935-01-471-9453
- Part Number
- Manufacturer
- Status
- 30-276-WD5PA
- Manufacturer
- 77820 - Amphenol Corp (Active)
- Primary Buy
- Primary Buy
- 30-276-WD5PA
- 97499 - Bell Textron Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-471-9453
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100

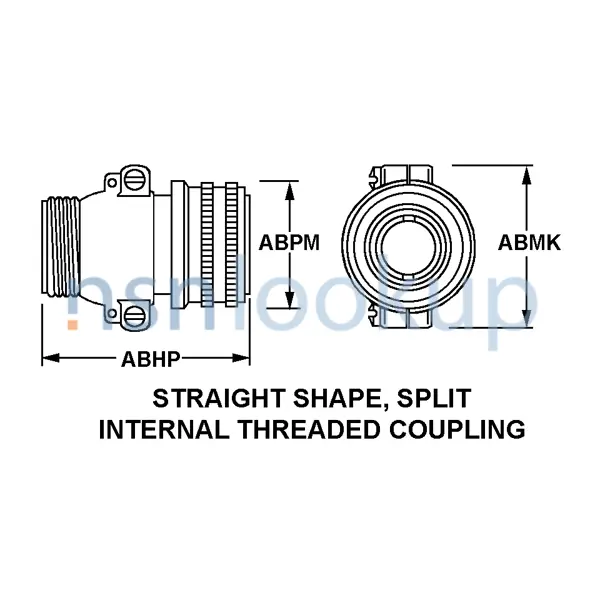

- Style Designator [STYL]
- Straight Shape, Split Internal Threaded Coupling
- Overall Length [ABHP]
- 29.30 Millimeters Maximum
- Overall Width [ABMK]
- 28.8 Millimeters Maximum
- Body Diameter [ABPM]
- 32.5 Millimeters Maximum
- Special Features [FEAT]
- Complete Coupling Shall Be Accomplished By Approximately 360 Degree Clockwise Rotation Of The Coupling Nut And Shall Provide Shell-To-Shell Bottoming. An Anti-Decoupling Device Shall Be Provided To Maintain Complete Coupling. In Addtion The Anti-Decoupling Device Shall Provide Or An Over Travel Of The Couplng Nut, Beyond The Shell-To-Shell Bottoming Point, Of At Least 1 (Click 9Detent, Tooth, Etc) Of The Anti-Decoupling Device, And Less Than 20 Degree Angular Rotation Of The Coupling Nut.Procurement Specification. This Connector Device Shall Meet All Requirements Of Mil-Dtl-38999, Mil-Dtl-38999/26, And Mil-Std-1560,
DLA Procurement Analysis 5935-01-471-9453
Management Data 5935-01-471-9453
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- V2
- MV-22 Aircraft
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5935-01-471-9453
Freight Information 5935-01-471-9453
5935-01-471-9453 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-471-9453 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-471-9453 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-471-9453 is not classified as a special type of cargo when transported by water. 5935-01-471-9453 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
