5935-01-468-0842
Electrical Connector Jackscrew
5935014680842 014680842 747223-3 747223
A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like. View more Electrical Connector Jackscrew
May 2023
1
Marketplace 5935-01-468-0842
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-468-0842 3+ Documents (More...)
-3 JACKSCREW,ELECTRICAL CONNECTOR 96 EA NS Request Quotation Subscribe to View Vendor Details... 747223
-3 JACKSCREW,ELECTRICAL CONNECTOR 460 EA NS Request Quotation Subscribe to View Vendor Details... 747223
/fsg-59/fsc-5905/us
Electrical Connector Jackscrew 5935014680842 Upgrade your Account Upgrade 5935-01-468-0842Electrical
Connector Jackscrew5935014680842 014680842 747223 -3 747223 A locking device specifically designed to
Users 2210-14-491-2806 France (ZF) Approved Sources 2210-14-491-2806 Part NumberManufacturerStatus10-747223
Restrictions 5935-01-468-0842
5935-01-468-0842 is a Electrical Connector Jackscrew that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-468-0842
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-468-0842
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
Approved Sources 5935-01-468-0842
- Part Number
- Manufacturer
- Status
- 747223-3
- Manufacturer
- 00779 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- 747223
- 00779 - Te Connectivity Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5935-01-468-0842
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Material [MATT]
- Steel
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Hole
- Nominal Thread Size [CQJX]
- 0.086 Inches
- End Item Identification [AGAV]
- Smq-11 B/C Up

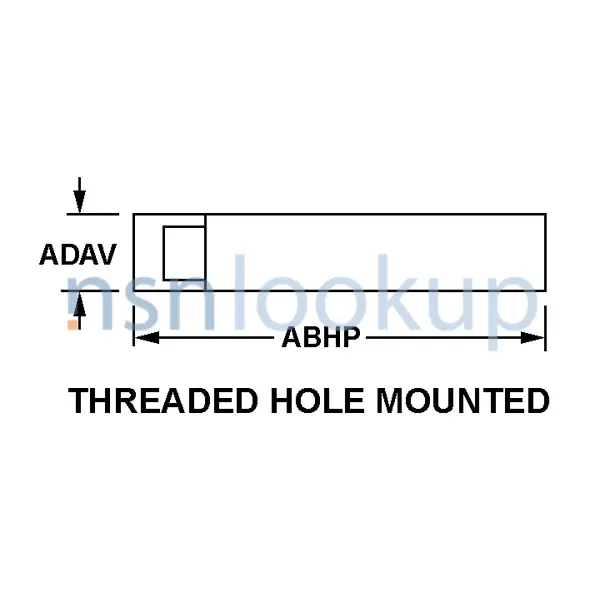

- Overall Diameter [ADAV]
- 0.187 Inches Nominal
- Overall Length [ABHP]
- 0.748 Inches Nominal
- Special Features [FEAT]
- Manufacturer's Name-Kit No. 4-40 Screwlock Female With 2.56 Threads, Amplimite Hd-20
- Thread Series Designator [THSD]
- Unc
- Style Designator [STYL]
- Threaded Hole Mounted
- Surface Treatment [SFTT]
- Zinc And Chromate
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
DLA Procurement Analysis 5935-01-468-0842
Management Data 5935-01-468-0842
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-01-468-0842
Freight Information 5935-01-468-0842
5935-01-468-0842 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-468-0842 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-468-0842 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-468-0842 is not classified as a special type of cargo when transported by water. 5935-01-468-0842 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-01-468-0842
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 0.8" H x 0.2" W x 0.2" L
- --
- --
- --
- Any Suitable Process
- 0.8" H x 0.2" W x 0.2" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5935-01-468-0842 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
