5935-01-466-7463
Electrical Receptacle Connector
5935014667463 014667463 MIL-DTL-28748/9 MRS0158PB0CX300 M28748/9G0ZO1Z M28748/09G0Z01Z MIL-DTL-28748
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
May 2023
7
Marketplace 5935-01-466-7463
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-466-7463 5+ Documents (More...)
/9 CONNECTOR,RECEPTACLE,ELECTRICAL /9 Request Quotation Subscribe to View MIL-DTL-28748/9 CONNECTOR
/9 CONNECTOR /9 CONNECTOR MIL-DTL-28748/9 CONNECTOR,RECEPTACLE,ELECTRICAL 41 EA NS Request Quotation
electrical contacts /9 CONNECTOR,RECEPTACLE,ELECTRICAL /9 Request Quotation Subscribe to View MIL-DTL-28748
/9 CONNECTOR /9 CONNECTOR MIL-DTL-28748/9 CONNECTOR,RECEPTACLE,ELECTRICAL 41 EA NS Request Quotation
-28748 An electrical fitting with electrical /9 CONNECTOR /9 CONNECTOR MIL-DTL-28748/9 CONNECTOR,RECEPTACLE
108 EA NS Request Quotation MIL-DTL-28748 INSERT,ELECTRICAL INSERT,ELECTRICAL MIL-DTL-28748 INSERT,ELECTRICAL
electrical /9 CONNECTOR /9 CONNECTOR MIL-DTL-28748/9 CONNECTOR,RECEPTACLE,ELECTRICAL 41 EA NS Request
Quotation /9 Receptacle Connector Body MIL-DTL-28748/9 CONNECTOR BODY,RECEPTACLE,ELECTRICAL 41 EA 41
/9 CONNECTOR,RECEPTACLE /9 CONNECTOR,RECEPTACLE,ELECTRICAL MIL-DTL-28748/9 CONNECTOR,RECEPTACLE
/9 CONNECTOR CONNECTOR,RECEPTACLE,ELECTRICAL MIL-DTL-28748/9 CONNECTOR,RECEPTACLE,ELECTRICAL 41
Restrictions 5935-01-466-7463
5935-01-466-7463 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-466-7463
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-466-7463
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
Approved Sources 5935-01-466-7463
- Part Number
- Manufacturer
- Status
- M28748/9G0ZO1Z
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-28748/9
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MRS0158PB0CX300
- 53669 - Aptiv Services 3 (Us), Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- M28748/09G0Z01Z
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-DTL-28748
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-466-7463
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

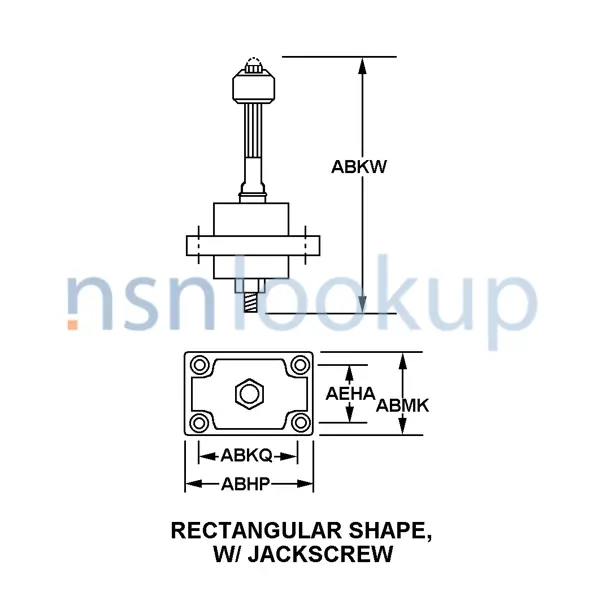

- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 1.245 Inches Minimum And 1.255 Inches Maximum
- Contact Position Arrangement Style [AFQX]
- 158 Single Mating End
- Contact Removability [AFQZ]
- Removable Single Mating End Single Contact Grouping
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 2.495 Inches Minimum And 2.505 Inches Maximum
- Body Style [AAQL]
- Rectangular Shape, W/Jackscrew
- Mating End Quantity [AFQW]
- 1
- End Item Identification [AGAV]
- On441/Usm636(
- Supplementary Features [SUPP]
- Mounting Method - Jackscrew And Unthreaded Hole
- Included Contact Quantity [CXCG]
- 158 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Pin Single Mating End Single Contact Grouping
- Insert Material [CQZG]
- Plastic Polyphenylene Sulfide Single Mating End
- Polarization Method [AFRN]
- Polarization Boss
- Overall Height [ABKW]
- 2.865 Inches Minimum And 2.885 Inches Maximum
- Overall Length [ABHP]
- 1.850 Inches Minimum And 1.870 Inches Maximum
- Overall Width [ABMK]
- 1.850 Inches Minimum And 1.870 Inches Maximum
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.143 Inches Minimum And 0.155 Inches Maximum
- Terminal Location [CQTM]
- Front Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Crimp Single Mating End Single Contact Grouping
