5935-01-465-8391
Plug-In Electronic Components Socket
5935014658391 014658391 812198 2-641932-3 641932
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
June 2023
3
Marketplace 5935-01-465-8391
Request a Quotation from participating marketplace vendors
812198 RQST NE
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-01-465-8391 5+ Documents (More...)
View Vendor Details... 64193-2 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 215 EA NS Request Quotation 2-641932-3
,PLUG-IN ELECTRONIC COMPONENTS 2334 EA NS Request Quotation Subscribe to View Vendor Details... 2-641932-3
4720-33-157-9343 Nonmetallic Hose Assembly 4720331579343 COMPONENTS 215 EA NS Request Quotation 2-641932
Ressort De Verrou 5340142173903142173903 COMPONENTS 215 EA NS Request Quotation 2-641932 https your
5340-14-217-3903 Ressort De Verrou 5340142173903 142173903 COMPONENTS 215 EA NS Request Quotation 2-641932
your Account Upgrade 5935-01-400-2234Plug-In Electronic Components Socket5935014002234 014002234 2-641932
Ressort De Verrou 5340142173903142173903 COMPONENTS 215 EA NS Request Quotation 2-641932 https your
Account Upgrade 5935-01-400-2234Plug-In Electronic Components Socket5935014002234 014002234 2-641932
SOCKET,PLUG-IN ELECTRONIC COMPONENTS 17 EA NS Request Quotation Subscribe to View Vendor Details... 2-641932
5935/us 5935-01-421-9118 COMPONENTS 17 EA NS Request Quotation Subscribe to View Vendor Details... 2-641932
Restrictions 5935-01-465-8391
5935-01-465-8391 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-465-8391
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-465-8391
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
Approved Sources 5935-01-465-8391
- Part Number
- Manufacturer
- Status
- 2-641932-3
- Manufacturer
- 00779 - Te Connectivity Corporation (Active)
- Original Design
- Original Design
- 812198
- 89536 - Fluke Corp (Active)
- Secondary Buy
- Secondary Buy
- 641932
- 00779 - Te Connectivity Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5935-01-465-8391
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- End Item Identification [AGAV]
- Calibrator, Voltage
- Accommodated Contact Quantity [AFRL]
- 24
- Body Material [AAFZ]
- Glass And Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.036 Inches Nominal
- Body Style [AAQL]
- Top Mount
- Contact Material [AFRG]
- Phosphor Bronze

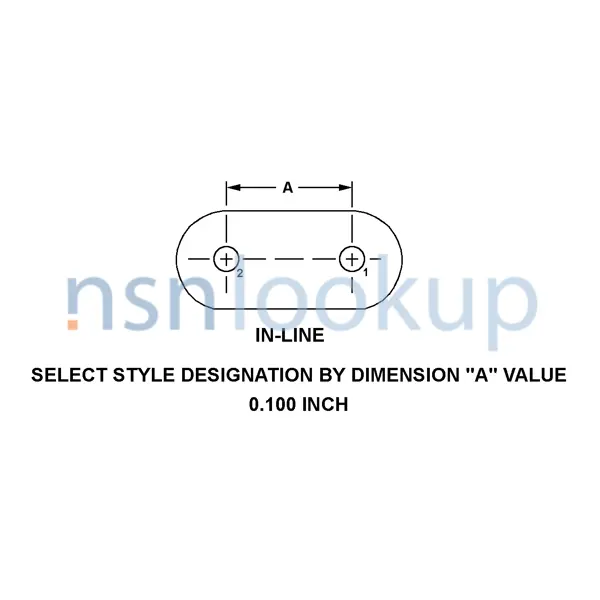

- Contact Position Arrangement Style [CRPY]
- In-Line
- Contact Surface Treatment [AFRH]
- Tin
- Mounting Method [AXGY]
- Body Through Hole
- Mounting Hole Style [AEVB]
- Round, Body
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Overall Height [ABKW]
- 0.338 Inches Maximum
- Overall Length [ABHP]
- 1.195 Inches Nominal
- Overall Width [ABMK]
- 0.394 Inches Nominal
- Special Features [FEAT]
- Manufacturer's Item Name Socket Assy, Dip, Ladder, 24 Position, Diplomate Dl; Socket With 24 Positions, Dual Row-To-Row Spacing; Ladder Frame Style; Straight Leg; Contact Style Stamped And Formed; Max Height Above Pcb .175 Inch; Socket Type Dual Leaf, Color Black; Housing Material Glass-Filled Thermoplastic With Flammability Rating Ul 94V-0
- Temp Rating [ABJH]
- 115.0 Deg Celsius
- Terminal Length [ABJT]
- 0.128 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 24 Pin
