5935-01-463-3178
Plug-In Electronic Components Socket
5935014633178 014633178 1A20405H05
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
6
Marketplace 5935-01-463-3178
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-463-3178 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-01-463-3178 RQST NE Updated Every Day 5935-01-463-3178 RQST
Updated Every Day 5935-01-463-3178 RQST NE Related Documents 5935-01-463-3178 1+ Documents ( More...
Restrictions 5935-01-463-3178
5935-01-463-3178 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-463-3178
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-463-3178
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
Approved Sources 5935-01-463-3178
- Part Number
- Manufacturer
- Status
- 1A20405H05
- Manufacturer
- 48306 - Northrop Grumman Support Services (Active)
- Primary Buy
- Primary Buy
- 1A20405H05
- 97942 - Northrop Grumman Systems Corporation (Active)
- Original Design
- Original Design
Datasheet 5935-01-463-3178
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 124
- Body Material [AAFZ]
- Any Acceptable
- Body Style [AAQL]
- Pcb, Standoff Terminals

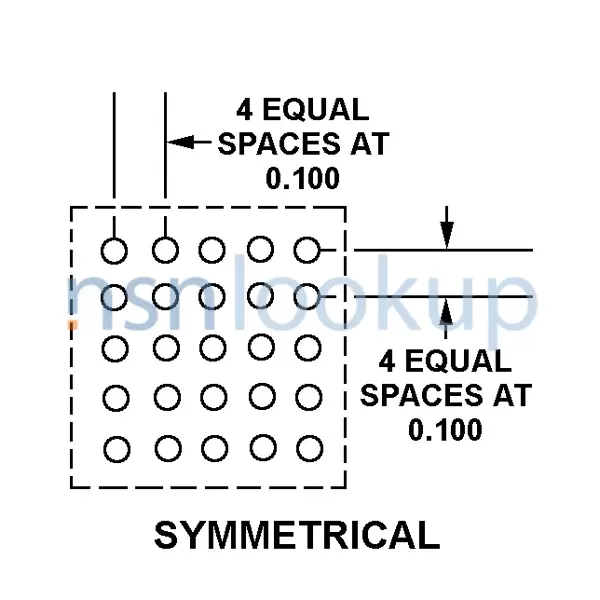

- Contact Position Arrangement Style [CRPY]
- Symmetrical
- Contact Maximum Current Rating In Amps [AFRC]
- 1.0
- Contact Maximum Voltage In Volts And Current Type [CSKW]
- 100.0 Dc
- Mounting Method [AXGY]
- Insert
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Precious Material [PRMT]
- Gold
- Precious Material And Location [PMLC]
- Spring Contacts Gold
- Overall Height [ABKW]
- 0.290 Inches Nominal
- Overall Length [ABHP]
- 1.350 Inches Nominal
- Overall Width [ABMK]
- 1.350 Inches Nominal
- Special Features [FEAT]
- Spring Contacts Shall Be Constructed Of Heat Treated Beryllium Copper; Interior Of The Socket Body Is Open Frame Or Hollow; Spring Contact Gold Plated Over Nickel Plating
- Temp Rating [ABJH]
- -40.0 Deg Celsius And 105.0 Deg Celsius
- Terminal Length [ABJT]
- 0.125 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 124 Pin
Weapon Systems (WSDC) 5935-01-463-3178
DLA Procurement Analysis 5935-01-463-3178
Management Data 5935-01-463-3178
Similar Supply Items to 5935-01-463-3178
Freight Information 5935-01-463-3178
5935-01-463-3178 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-463-3178 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-463-3178 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-01-463-3178 is not classified as a special type of cargo when transported by water. 5935-01-463-3178 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
