5935-01-429-3466
Plug-In Electronic Components Socket
5935014293466 014293466 AR28-HZL/7 LS328-01TG 149-5002-008
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
3
Marketplace 5935-01-429-3466
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-429-3466 4+ Documents (More...)
(Identification) 1/2 NSN 5935-01-429-3466 (Identification) 2/2 - - 1.
LS328-01TG SOCKET,PLUG-IN ELECTRONIC COMPONENTS 206 EA NS Request Quotation Updated Every Day 5935-01
Navy (DN)NZDiscontinued-Use 5935-01-429-3466Defense Logistics Agency (DS)IZDiscontinued-Use 5935-01-429-3466
Components Socket your Account Upgrade 5935-01-429-3466Plug-In Electronic Components Socket5935014293466 014293466
AR28-HZL https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-429-3466 Plug-In Electronic Components
Plug-In Electronic Components Socket 5935-01-429-3466 Plug-In Electronic Components https//www.nsnlookup.com
Restrictions 5935-01-429-3466
5935-01-429-3466 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-429-3466
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-429-3466
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Germany (ZG01)
- Effective Date:
- 1 Nov 2001
Approved Sources 5935-01-429-3466
- Part Number
- Manufacturer
- Status
- LS328-01TG
- Manufacturer
- 61638 - Advanced Interconnections (Active)
- Primary Buy
- Primary Buy
- 149-5002-008
- 6R026 - Mnemonics Inc (Active)
- Vendor Drawing
- Vendor Drawing
- AR28-HZL/7
- 0K2J7 - Assmann Electronics Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-01-429-3466
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 28
- Body Material [AAFZ]
- Glass And Plastic
- Body Style [AAQL]
- Pcb, Standoff Terminals
- Capacitor Quantity [AKWT]
- 0
- Contact Position Arrangement Style [CRPY]

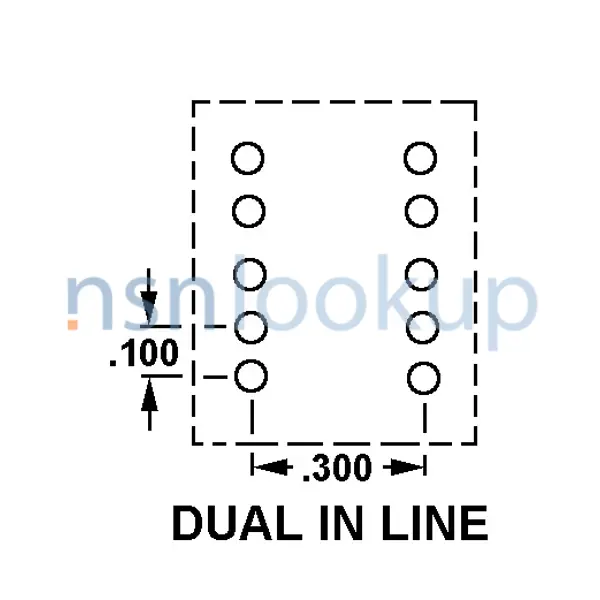

- Dual In-Line
