5935-01-413-9908
Electrical Connector Guide
5935014139908 014139908 13216E9184
An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like. View more Electrical Connector Guide
May 2023
4
Marketplace 5935-01-413-9908
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-413-9908 1+ Documents (More...)
Updated Every Day 5935-01-413-9908 RQST NE Related Documents 5935-01-413-9908 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-413-9908 Electrical Connector Guide 5935014139908
Restrictions 5935-01-413-9908
5935-01-413-9908 is a Electrical Connector Guide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-413-9908
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-413-9908
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZ
Approved Sources 5935-01-413-9908
- Part Number
- Manufacturer
- Status
- 13216E9184
- Manufacturer
- 97403 - Cecom Lr Center (Active)
- Primary Buy
- Primary Buy
- 13216E9184
- 55907 - Monmouth R F Products Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-01-413-9908
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Eye Inside Diameter [AATK]
- 0.193 Inches Nominal
- Material [MATT]
- Copper Alloy
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Stud
- Mounting Slot Length [ABVG]
- 0.400 Inches Nominal
- Mounting Slot Width [ABTD]
- 0.500 Inches Nominal
- Nominal Thread Size [CQJX]
- 0.4375 Inches
- Overall Length [ABHP]
- 0.620 Inches Nominal
- Special Features [FEAT]
- Item Is Not A Key Shaped Socket
- Thread Series Designator [THSD]
- Unf
- Width Across Flats [ASDB]
- 0.620 Inches Nominal

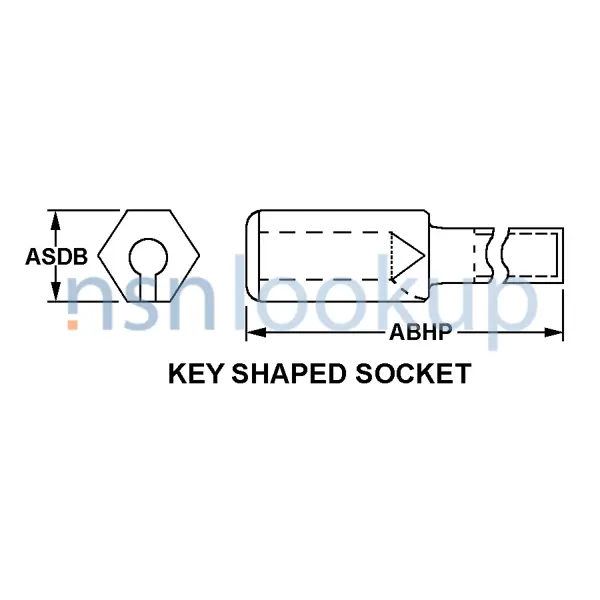

- Style Designator [STYL]
- Key Shaped Socket
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
