5935-01-408-0089
Electrical Receptacle Connector Body
5935014080089 014080089 MIL-DTL-38999/20 D38999/20FF11AN 70066902 MIL-C-38999/20
The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector Body
November 2023
11
Marketplace 5935-01-408-0089
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-408-0089 5+ Documents (More...)

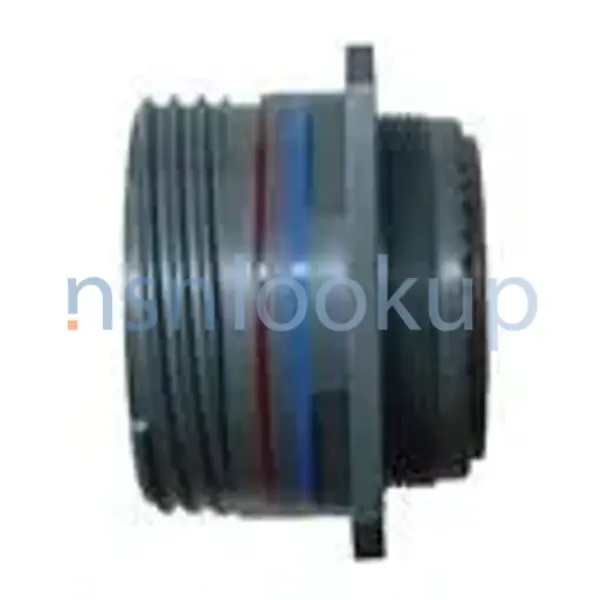

Photo 1/2 NSN 5935-01-408-0089 (Identification) 2/2 - - 1.
D38999/20FF11AN CONNECTOR BODY,RECEPTACLE,ELECTRICAL 3 EA NS Request Quotation Updated Every Day 5935
participating marketplace vendors Request Related Documents 5935-99-831-6815 Cancelled - Replaced by NSN 5935-01-408-0089
Receptacle Connector Body5935998316815 998316815 https/ https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-408-0089
Restrictions 5935-01-408-0089
5935-01-408-0089 is a Electrical Receptacle Connector Body that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-408-0089
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-408-0089
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 1995
Approved Sources 5935-01-408-0089
- Part Number
- Manufacturer
- Status
- D38999/20FF11AN
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-38999/20
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 70066902
- K6451 - Bae Systems Marine Limited (Active)
- Secondary Buy
- Secondary Buy
- MIL-C-38999/20
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-408-0089
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 19.5 Millimeters Minimum And 20.9 Millimeters Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 29.36 Millimeters Nominal
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 19-11 Single Mating End
- Contact Removability [AFQZ]
- Removable Single Mating End Single Contact Grouping
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 29.36 Millimeters Nominal
- Body Style [AAQL]
- Straight Shape, External Coupling
- Mating End Quantity [AFQW]
- 1
- Supplementary Features [SUPP]
- Mounting Method - Slot
- Included Contact Quantity [CXCG]
- 11 Single Mating End Single Contact Grouping
- Insert Position In Deg [AFRP]
- 0.0 And 80.0 And 142.0 And 196.0 And 293.0
- Insert Material [CQZG]
- Plastic Epoxy Single Mating End
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment [CSWM]
- Nickel
- Shell Type [AFRT]
- Solid
- Overall Height [ABKW]
- 36.5 Millimeters Nominal
- Overall Length [ABHP]
- 31.5 Millimeters Maximum
- Overall Width [ABMK]
- 36.5 Millimeters Nominal
- Specification/Standard Data [ZZZK]
- 81349-Mil-C-38999/20 Government Specification
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Crimp Single Mating End Single Contact Grouping
- Test Data Document [TEST]
- 81349-Mil-C-38999 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
