5935-01-398-8305
Electrical Receptacle Connector
5935013988305 013988305 1301D320PC4 221789-1
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
November 2023
1
Marketplace 5935-01-398-8305
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-01-398-8305 3+ Documents (More...)
10 EA NS Request Quotation 221789-1-XXX CONNECTOR,RECEPTACLE,ELECTRICAL 8 EA NS Request Quotation 221789
NE Updated Every Day 5935-01-398-8305 RQST Updated Every Day 5935-01-398-8305 RQST NE Related Documents
1301D320PC4 221789 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-398-8305 Electrical Receptacle
Connector 013988305 Account Upgrade 5935-01-398-8305Electrical Receptacle Connector5935013988305 013988305
Electrical Receptacle Connector 013988305 Account Upgrade 5935-01-398-8305Electrical Receptacle
Connector5935013988305 013988305 1301D320PC4 221789 -1 CONNECTOR,RECEPTACLE,ELECTRICAL 60 EA NS Request
Restrictions 5935-01-398-8305
5935-01-398-8305 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-398-8305
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-398-8305
- US Marine Corps (MC49)
- Effective Date:
- 1 Sep 2006
- US Navy (N9BN)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKEHX
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 2002
Approved Sources 5935-01-398-8305
- Part Number
- Manufacturer
- Status
- 1301D320PC4
- Manufacturer
- 95210 - Peerless Instrument Co., Inc. (Active)
- Primary Buy
- Primary Buy
- 221789-1
- 00779 - Te Connectivity Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-01-398-8305
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 0.155 Inches Nominal
- Connector Locking Method [AFRV]
- Externally Threaded Shell
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Material Document And Classification [CSGF]
- Qq-C-530 Fed Spec Single Material Response Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- Sma Single Mating End
- Contact Surface Treatment Document And Classification [CRBJ]
- Mil-G-45204 Mil Spec Single Treatment Response Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping

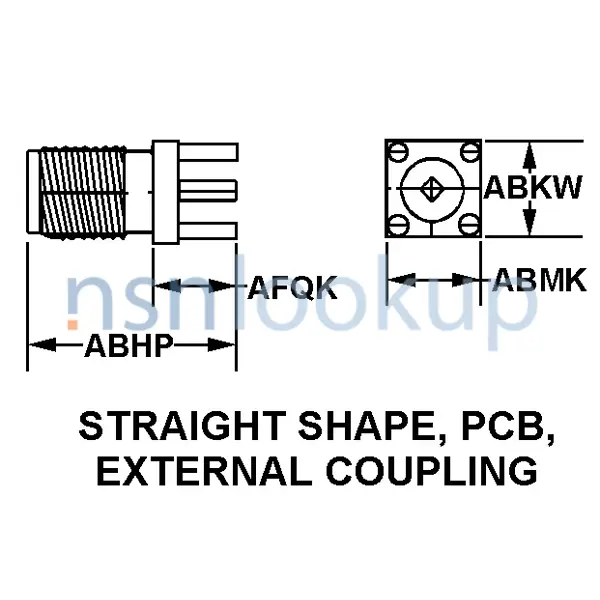

- Body Style [AAQL]
- Straight Shape, Pcb, External Coupling
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Included Contact Type [CXCL]
- Coaxial Socket Single Mating End Single Contact Grouping
- Included Contact Quantity [CXCG]
- 1 Single Mating End Single Contact Grouping
- Insert Material [CQZG]
- Plastic Polytetrafluoroethylene Single Mating End
- Insert Material Document And Classification [CTKL]
- Mil-P-19468 Mil Spec Single Material Response Single Mating End
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Shell Material Document And Classification [CTHH]
- Qq-B-626 Fed Spec Single Material Response
- Shell Material [CSPT]
- Copper Alloy
- Shell Surface Treatment [CSWM]
- Gold
- Shell Type [AFRT]
- Solid
- Shell Surface Treatment Document And Classification [CTBC]
- Mil-G-45204 Mil Spec Single Treatment Response
- Overall Height [ABKW]
- 0.245 Inches Minimum And 0.255 Inches Maximum
- Overall Length [ABHP]
- 0.515 Inches Minimum And 0.545 Inches Maximum
- Overall Width [ABMK]
- 0.245 Inches Minimum And 0.255 Inches Maximum
- Thread Series Designator [THSD]
- Uns
- Thread Quantity Per Inch [CMLP]
- 36
- Threaded Device Type [AFQR]
- Coupling Facility
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Pin Single Mating End Single Contact Grouping
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
