5935-01-395-2431
Plug-In Electronic Components Socket
5935013952431 013952431 224-AG49-SM
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
1
Marketplace 5935-01-395-2431
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-395-2431 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-01-395-2431 RQST NE Updated Every Day 5935-01-395-2431 RQST
Updated Every Day 5935-01-395-2431 RQST NE Related Documents 5935-01-395-2431 2+ Documents ( More...
Components Socket your Account Upgrade 5935-01-395-2431Plug-In Electronic Components Socket5935013952431 013952431
Restrictions 5935-01-395-2431
5935-01-395-2431 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-395-2431
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-395-2431
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
Approved Sources 5935-01-395-2431
- Part Number
- Manufacturer
- Status
- 224-AG49-SM
- Manufacturer
- 91506 - Augat Inc (Replaced)
- Original Design
- Original Design
- 224-AG49-SM
- 00779 - Te Connectivity Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-01-395-2431
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- End Item Identification [AGAV]
- An/Fps-108Acd (99687)
- Accommodated Contact Quantity [AFRL]
- 24
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Top Mount
- Contact Material [AFRG]
- Copper Alloy

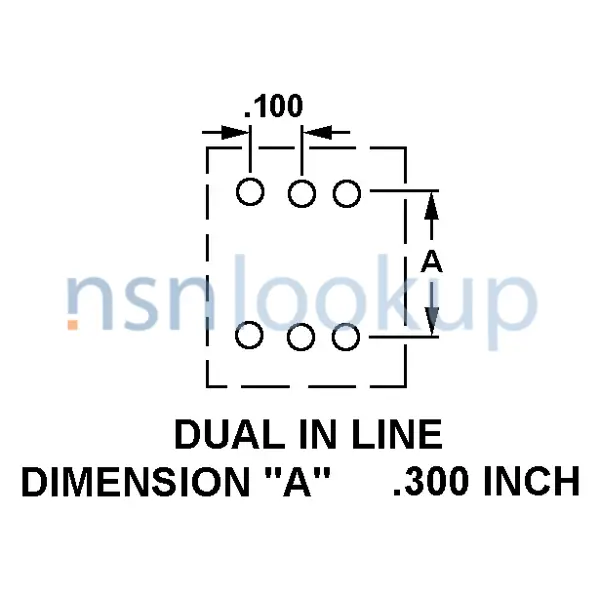

- Contact Position Arrangement Style [CRPY]
- Dual In-Line
- Contact Maximum Current Rating In Amps [AFRC]
- 2.0
- Contact Surface Treatment [AFRH]
- Gold And Nickel
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.024 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Projection Length Above Mounting Surface [AKXD]
- 0.196 Inches Maximum
- Overall Height [ABKW]
- 0.319 Inches Minimum And 0.329 Inches Maximum
- Overall Length [ABHP]
- 1.200 Inches Maximum
- Overall Width [ABMK]
- 0.400 Inches Maximum
- Special Features [FEAT]
- Surfaces Mount,Leads Do Not Pass Thru Pcb
- Terminal Type And Quantity [TTQY]
- 24 Pin
