5935-01-391-3717

Electrical Modular Receptacle Connector

5935013913717 013913717 NEBV11/8PFY/T

An electrical fitting with contacts and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. The insert modules may or may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s), or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRNIG BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT, ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); CONNECTOR, RECEPTACLE, ELECTRICAL and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABEL ASSEMBLY (as modified). For items without inserts see SHELL, ELECTRICAL CONNECTOR. View more Electrical Modular Receptacle Connector

5935-01-391-3717 CONNECTOR,MODULAR RECEPTACLE,ELECTRICAL 5935013913717 013913717

Managed by United States
NSN Created on 9 Jun 1994
Data Last Changed
May 2023
NATO Update Count
2
NATO Data Quality
AAQL Style 55G for 5935-01-391-3717 1/1
NSN 5935-01-391-3717 (Identification) 1/1

5935-01-391-3717 Stock and Availability Marketplace 5935-01-391-3717

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
5935-01-391-3717 BUY NE FedMallFedMall.mil
eBay Updated Every Day
5935-01-391-3717 RQST NE eBay
eBay Updated Every Day
5935-01-391-3717 RQST eBay
Amazon Updated Every Day
5935-01-391-3717 RQST NE Amazon

5935-01-391-3717 Related Documents Related Documents 5935-01-391-3717 2+ Documents (More...)

BUY NE FedMall Updated Every Day 5935-01-391-3717 RQST NE Updated Every Day 5935-01-391-3717 RQST
Updated Every Day 5935-01-391-3717 RQST NE Related Documents 5935-01-391-3717 2+ Documents ( More...
BUY NE FedMall Updated Every Day 5935-01-391-3717 RQST NE Updated Every Day 5935-01-391-3717 RQST Updated
7391-37170082-3711-7 An item having either a single tapped winding (autotransformer type Day 5935-01-391-3717
RQST Updated Every Day 5935-01-391-3717 RQST Transformer 5950009887975 https : | https//www.nsnlookup.com
-7975 Radio Frequency Transformer 5950009887975 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-391-3717

5935-01-391-3717 Demil Restrictions 5935-01-391-3717

DEMIL: A | DEMILI: | CRITICALITY: X | HMIC: P | PMIC: G | EDC: A | ADPEC:

5935-01-391-3717 is a Electrical Modular Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.

5935-01-391-3717 HTS and ScheduleB Import and Export 5935-01-391-3717

5935-01-391-3717 End Users End Users 5935-01-391-3717

US Air Force (FXGX)
Effective Date:
1 Nov 2005
Former MOE Rule:
FXTX

5935-01-391-3717 Manufacturers Approved Sources 5935-01-391-3717

5935-01-391-3717 Technical Data Datasheet 5935-01-391-3717

Characteristic
Specifications
FIIG
A039B0

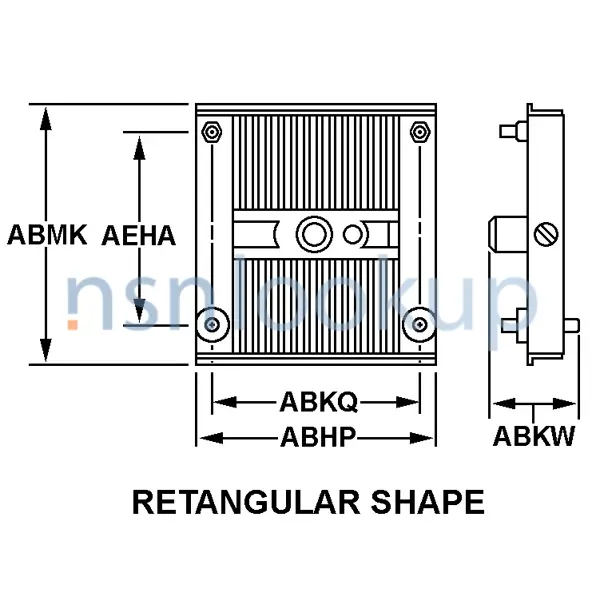

Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
