5935-01-384-5421

Plug-In Electronic Components Socket

5935013845421 013845421 SS-132-G-13

An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket

5935-01-384-5421 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 5935013845421 013845421

Managed by United States
NSN Created on 17 Dec 1993
Data Last Changed
May 2023
NATO Update Count
1
NATO Data Quality
AAQL Style 69B for 5935-01-384-5421 1/3
NSN 5935-01-384-5421 (Identification) 1/3
AKWJ Style 3204E for 5935-01-384-5421 2/3
NSN 5935-01-384-5421 (Identification) 2/3
CRPY Style 3202A for 5935-01-384-5421 3/3
NSN 5935-01-384-5421 (Identification) 3/3

5935-01-384-5421 Stock and Availability Marketplace 5935-01-384-5421

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
5935-01-384-5421 BUY NE FedMallFedMall.mil
eBay Updated Every Day
5935-01-384-5421 RQST NE eBay
eBay Updated Every Day
5935-01-384-5421 RQST eBay
Amazon Updated Every Day
5935-01-384-5421 RQST NE Amazon

5935-01-384-5421 Related Documents Related Documents 5935-01-384-5421 1+ Documents (More...)

(Identification) 1/3 NSN 5935-01-384-5421 (Identification) 2/3 NSN 5935-01-384-5421 (Identification
5935-01-384-5421 BUY NE FedMall Updated Every Day 5935-01-384-5421 RQST NE Updated Every Day 5935-01
-384-5421 RQST Updated Every Day 5935-01-384-5421 RQST NE Related Documents 5935-01-384-5421 1+ Documents

5935-01-384-5421 Demil Restrictions 5935-01-384-5421

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: P | PMIC: G | EDC: A | ADPEC:

5935-01-384-5421 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.

5935-01-384-5421 HTS and ScheduleB Import and Export 5935-01-384-5421

5935-01-384-5421 End Users End Users 5935-01-384-5421

US Air Force (FXGX)
Effective Date:
1 Apr 2006
Former MOE Rule:
FXTX

5935-01-384-5421 Manufacturers Approved Sources 5935-01-384-5421

5935-01-384-5421 Technical Data Datasheet 5935-01-384-5421

Characteristic
Specifications
FIIG
A02300
Contact Position Arrangement Style [CRPY]
Dual In-Line
Accommodated Contact Quantity [AFRL]
32
Contact Maximum Current Rating In Amps [AFRC]
1.0
Contact Material [AFRG]
Beryllium Copper
Contact Surface Treatment [AFRH]
Gold
Body Style [AAQL]
Top Mount
Overall Length [ABHP]
3.200 Inches Nominal
Terminal Length [ABJT]
0.125 Inches Nominal
Overall Height [ABKW]
0.310 Inches Nominal
Overall Width [ABMK]
0.100 Inches Nominal
Body Material [AAFZ]
Plastic
Terminal Type And Quantity [TTQY]
32 Pin
Mounting Type For Which Designed [BCNX]
Printed Circuit
Mounting Method [AXGY]
Terminal

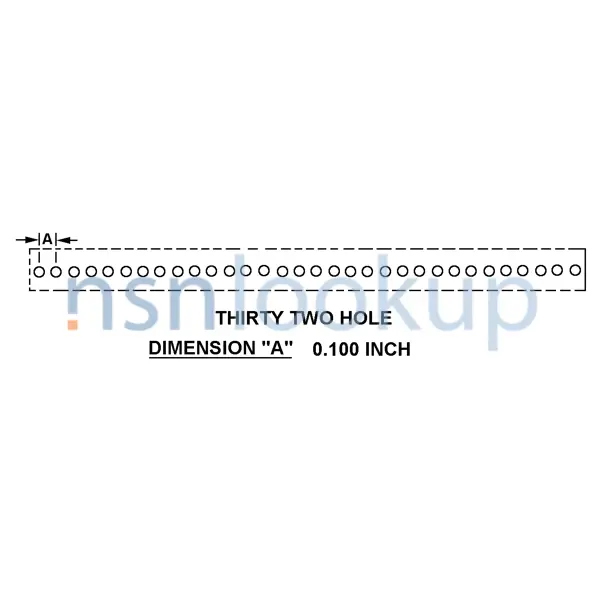

Printed Circuit Board Hole Arrangement Style [AKWJ]
Thirty Two Hole
Precious Material [PRMT]
Gold
Precious Material And Weight [PMWT]
0.032 Gold Grains, Troy
Precious Material And Location [PMLC]
Contact Surfaces Gold
