5935-01-359-0980

Electrical Receptacle Connector Body

5935013590980 013590980 7137144-3318 250335-18 394-3318-017 339121-6

The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector Body

5935-01-359-0980 CONNECTOR BODY,RECEPTACLE,ELECTRICAL 5935013590980 013590980

Managed by United States
NSN Created on 29 May 1992
Data Last Changed
June 2023
NATO Update Count
9
NATO Data Quality
AAQL Style 50Q for 5935-01-359-0980 1/1
NSN 5935-01-359-0980 (Identification) 1/1

5935-01-359-0980 Stock and Availability Marketplace 5935-01-359-0980

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
5935-01-359-0980 BUY NE FedMallFedMall.mil
eBay Updated Every Day
5935-01-359-0980 RQST NE eBay
eBay Updated Every Day
5935-01-359-0980 RQST eBay
Amazon Updated Every Day
5935-01-359-0980 RQST NE Amazon

5935-01-359-0980 Related Documents Related Documents 5935-01-359-0980 3+ Documents (More...)

7137144-3318 250335-18 394-3318-017 339121-6 The main or principal part of a CONNECTOR, RECEPTACLE,
United States (US) 4. 5935-01-359-0980 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5935-01-359-0980 RQST NE Updated Every Day 5935-01-359-0980 RQST
to enable JavaScript in your web browser . 5315 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-359-0980
Electrical Receptacle Connector Body 0980Electrical Receptacle Connector Body5935013590980 013590980
7137144-3318 250335-18 394-3318-017 339121 Eccentric Pin 5315144097515 144097515,339121 7137144-3318250335
https//www.nsnlookup.com /fsg-48/fsc-4820/fr 4820 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-359-0980
Electrical Receptacle Connector Body 0980Electrical Receptacle Connector Body5935013590980 013590980
7137144-3318 250335-18 394-3318-017 339121 fr 5315-14-409-7515 Eccentric Pin 5315144097515 144097515,339121

5935-01-359-0980 Demil Restrictions 5935-01-359-0980

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: P | PMIC: A | EDC: A | ADPEC:

5935-01-359-0980 is a Electrical Receptacle Connector Body that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

5935-01-359-0980 HTS and ScheduleB Import and Export 5935-01-359-0980

5935-01-359-0980 End Users End Users 5935-01-359-0980

US Air Force (FXGX)
Effective Date:
1 Nov 2005
Former MOE Rule:
FXTX
US Navy (N9BN)
Effective Date:
1 Nov 2005
Supplementary Collaborators:
KE

5935-01-359-0980 Manufacturers Approved Sources 5935-01-359-0980

5935-01-359-0980 Technical Data Datasheet 5935-01-359-0980

Characteristic
Specifications
FIIG
A039B0
Connector Locking Method [AFRV]
Friction
Contact Position Arrangement Style [AFQX]
3 Rows Of Contacts Non-Inserted Board Single Mating End
Environmental Protection [ADZC]
Salt Water Resistant And Shock Resistant And Moisture Resistant And Thermal Shock Resistant

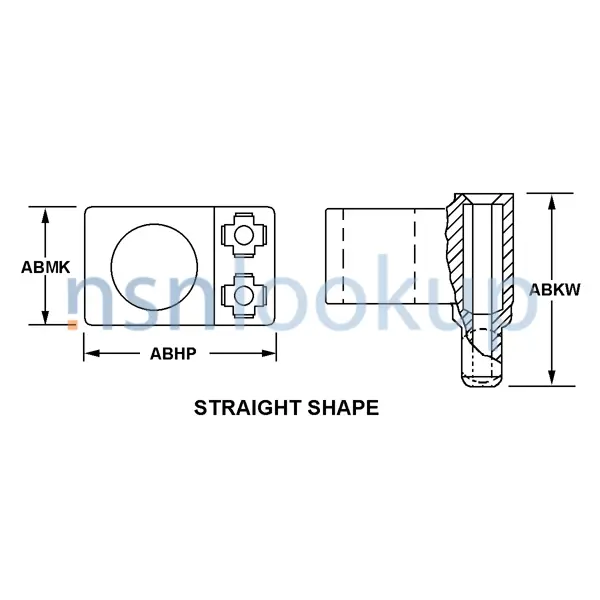

Body Style [AAQL]
