5935-01-331-2819
Electrical Modular Plug Connector
5935013312819 013312819 NPDJV35/2TMR-31PMR-1TMR-33PMR/TH 74B059046-201
An electrical fitting with contacts and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. The insert modules may/may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, core, wire, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is not designed to be mounted on a bulkhead, chassis, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG, TIP; INSERT, ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); CONNECTOR, PLUG, ELECTRICAL and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Modular Plug Connector
November 2023
5
Marketplace 5935-01-331-2819
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-331-2819 1+ Documents (More...)
United States (US) 4. 5935-01-331-2819 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5935-01-331-2819 RQST Updated Every Day 5935-01-331-2819 RQST NE Related Documents
Restrictions 5935-01-331-2819
5935-01-331-2819 is a Electrical Modular Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-331-2819
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-331-2819
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Malaysia (YW01)
- Effective Date:
- 1 May 2002
- Australia (ZA01)
- Effective Date:
- 1 May 2008
Approved Sources 5935-01-331-2819
- Part Number
- Manufacturer
- Status
- NPDJV35/2TMR-31PMR-1TMR-33PMR/TH
- Manufacturer
- 50541 - Smiths Interconnect Americas, Inc. (Active)
- Primary Buy
- Primary Buy
- 74B059046-201
- 76301 - The Boeing Company (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5935-01-331-2819
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Body Style [AAQL]

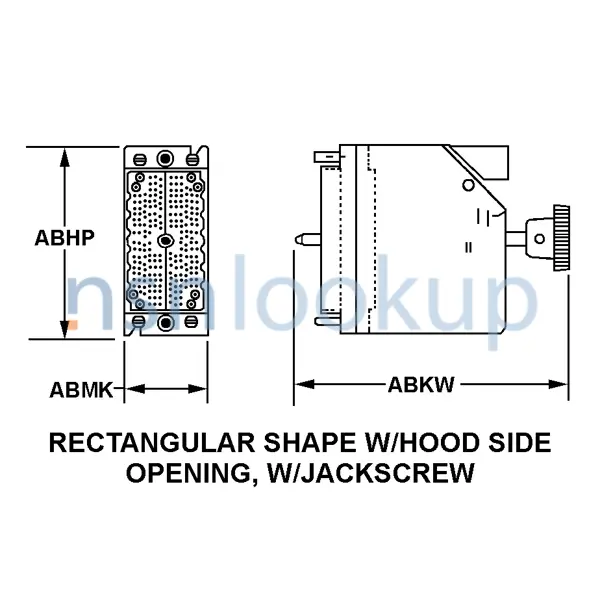

- Rectangular Shape W/Hood Side Opening, W/Jackscrew
- Cable Entrance Diameter [AFQJ]
- 0.630 Inches Minimum And 1.969 Inches Maximum
- Connector Cable Strain Relief Method [AFRW]
- Cable Clamp
- Connector Locking Method [AFRV]
- Jackscrew
- Contact Material [CQTZ]
- Copper Alloy Single Mating End All Contact Groupings
- Contact Removability [AFQZ]
- Removable Single Mating End All Contact Groupings
- Contact Maximum Current Rating In Amps [AFRC]
- 5.0 Single Mating End 3Rd Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 5.0 Single Mating End 4Th Contact Grouping
- Contact Surface Treatment Document And Classification [CRBJ]
- Mil-G-45204 Mil Spec 1St Treatment Response Single Mating End All Contact Groupings
- Contact Surface Treatment [CQYH]
- Gold And Nickel Single Mating End All Contact Groupings
- Guide Design And Location [CSLR]
- Hexagon Shape Male Post Left-Hand Bottom At 3 Oclock
- Guide Design And Location [CSLR]
- Hexagon Shape Male Post Right-Hand Bottom At 9 Oclock
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Size [CQJX]
- 6.0 Millimeters
- Operating Temp Rating [AWTN]
- -55.0 Deg Celsius Minimum And 105.0 Deg Celsius Maximum
- Included Contact Quantity [CXCG]
- 310 Single Mating End 3Rd Contact Grouping
- Included Contact Quantity [CXCG]
- 330 Single Mating End 4Th Contact Grouping
- Included Contact Quantity [CXCG]
- 5 Single Mating End 1St Contact Grouping
- Included Contact Type [CXCL]
- Round Pin Single Mating End All Contact Groupings
- Included Contact Quantity [CXCG]
- 10 Single Mating End 2Nd Contact Grouping
- Insert Material [CQZG]
- Plastic Polyamide Glass Filled Single Mating End
- Polarization Method [AFRN]
- Guide Pin/Socket
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.655 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Shell Material [CSPT]
- Aluminum
- Shell Type [AFRT]
- Hood, Side Opening
- Overall Height [ABKW]
- 4.580 Inches Nominal
- Overall Length [ABHP]
- 3.130 Inches Nominal
- Overall Width [ABMK]
- 3.000 Inches Nominal
- Thread Series Designator [THSD]
- Iso M
- Thread Tolerance Class [CTTC]
- 6H External
- Threaded Device Type [AFQR]
- Coupling Facility
- Terminal Location [CQTM]
- Back Single Mating End All Contact Groupings
- Terminal Type [CSCF]
- Crimp Single Mating End All Contact Groupings
- Thread Direction [AAJF]
- Right-Hand
- Thread Pitch In Millimeters [CQQR]
- 0.70
