5935-01-331-0991
Plug-In Electronic Components Socket
5935013310991 013310991 K4-SS
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
6
Marketplace 5935-01-331-0991
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-331-0991 5+ Documents (More...)
RQST NE Updated Every Day 5935-01-331-0991 RQST Updated Every Day 5935-01-331-0991 RQST NE Related
-01-331-0991 Plug-In Electronic Components Socket,K4-SS (Identification) 1/3 NSN 5935-01-331-0991 (Identification
Plug-In Electronic Components Socket,K4-SS Relay Socket 5930997368514997368514,K4-SS how to enable
Relay Socket 5930997368514997368514,K4-SS 22714330011812271011812271 is a replaceable https https
https//www.nsnlookup.com /fsg-59/fsc-5930/uk 5930-99-736-8514 Relay Socket 5930997368514 997368514,K4-SS
Relay Socket 5930997368514997368514,K4-SS to enable JavaScript https//www.nsnlookup.com /fsg-59/fsc
0991 Plug-In Electronic Components Socket,K4-SS https//www.nsnlookup.com /fsg-43/fsc-4330/us 4330-
2F-P4-7SS2FE7 A replaceable device designed https https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-331-0991
Coupling Half4730012238702 012238702SS-QC4-S-4PF-K4 SS https//www.nsnlookup.com /fsg-43/fsc-4330/us
ELEMENT,FLUID 99 EA NS Request Quotation https https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-331-0991
Restrictions 5935-01-331-0991
5935-01-331-0991 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-331-0991
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-331-0991
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
Approved Sources 5935-01-331-0991
- Part Number
- Manufacturer
- Status
- K4-SS
- Manufacturer
- 61529 - Aromat Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-331-0991
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 14
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Surface Mount
- Contact Material [AFRG]
- Copper Alloy

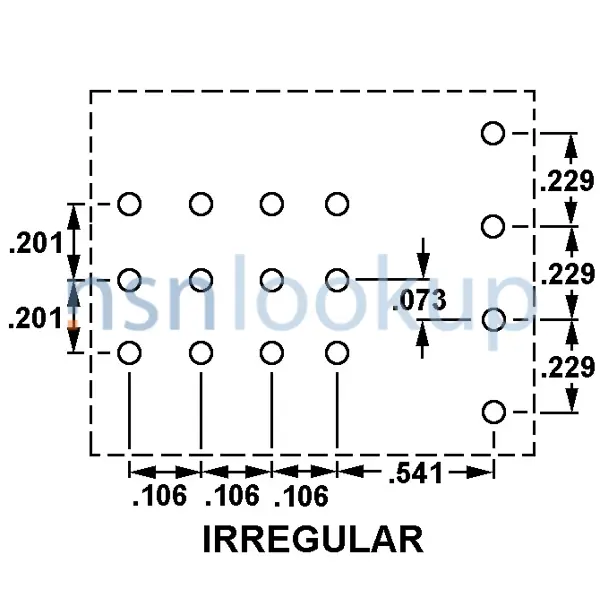

- Contact Position Arrangement Style [CRPY]
- Irregular
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Distance Between Mounting Facility Centers [AEJN]
- 0.354 Inches Nominal
- Furnished Items And Quantity [TMQY]
- 1 Clip
- Missing Contact Designation [AKWF]
- 2Nd Contact Position And 3Rd Contact Position
- Mounting Hole Diameter [ABTB]
- 0.120 Inches Nominal
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy And 0.014 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver
- Overall Height [ABKW]
- 0.591 Inches Nominal
- Overall Length [ABHP]
- 1.259 Inches Nominal
- Overall Width [ABMK]
- 0.748 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 14 Tab, Solder Lug
Weapon Systems (WSDC) 5935-01-331-0991
DLA Procurement Analysis 5935-01-331-0991
Management Data 5935-01-331-0991
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-01-331-0991
Freight Information 5935-01-331-0991
5935-01-331-0991 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-01-331-0991 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-01-331-0991 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-01-331-0991 is not classified as a special type of cargo when transported by water. 5935-01-331-0991 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-01-331-0991
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5935-01-331-0991 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
