5935-01-328-2713
Plug-In Electronic Components Socket
5935013282713 013282713 MIL-DTL-12883/48 M12883/48-04S MIL-DTL-12883 MIL-S-12883/48
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
Managed by United States
NSN Created on 30 Oct 1990
Data Last Changed
November 2023
November 2023
NATO Update Count
8
8
NATO Data Quality
Marketplace 5935-01-328-2713
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-328-2713 5+ Documents (More...)
MIL-DTL-12883/48 M12883/48-04S MIL-DTL-12883 MIL-S-12883/48 An item designed to electrically connect
M12883/48/04S SOCKET 1 EA NS Request Quotation Updated Every Day 5935-01-328-2713 RQST NE Updated Every
connect M12883/48/04S SOCKET 1 EA NS Request Quotation Updated Every Day 5935-01-328-2713 RQST NE Updated
M12883/48/04S SOCKET 1 EA NS Request Quotation Updated Every Day 5935-01-328-2713 RQST NE Updated Every
connect M12883/48/04S SOCKET 1 EA NS Request Quotation Updated Every Day 5935-01-328-2713 RQST NE Updated
MIL-DTL-12883 MIL-S-12883/48 An item designed to electrically connect and mechanically /51 M12883
/51-004 MIL-S-12883/51 M6106/5-004 MIL-DTL-12883 142231379,12883 /48 M12883/48-04S MIL-DTL-12883 MIL-S
-01-372-2638 Left Hand Wing 4910013722638 013722638 Croc Simple 4030142231379 142231379,12883 MIL-S-12883/48
/51-004 MIL-S-12883/51 M6106/5-004 MIL-DTL-12883 142231379,12883 /48 M12883/48-04S MIL-DTL-12883 MIL-S
-01-372-2638 Left Hand Wing 4910013722638 013722638 Croc Simple 4030142231379 142231379,12883 MIL-S-12883/48
your Account Upgrade 5935-01-338-3492Plug-In Electronic Components Socket5935013383492 013383492 MIL-DTL-12883
/48 M12883/48-05 MIL-S-12883/48 An item designed to electrically connect and mechanically position
05MIL-S-12883/48 An item designed to electrically connect and mechanically M12883/48-04S MIL-DTL-12883
/48 M12883/48-05 MIL-S-12883/48 An item designed to electrically connect and mechanically position
05MIL-S-12883/48 An item designed to electrically connect and mechanically M12883/48-04S MIL-DTL-12883
your Account Upgrade 5935-01-345-4773Plug-In Electronic Components Socket5935013454773 013454773 MIL-DTL-12883
/48 M12883/48-01 MIL-S-12883/48 An item designed to electrically connect and mechanically position
An item designed to electrically connect and mechanically position the M12883/48-02S MIL-S-12883/48
/48 M12883/48-01 MIL-S-12883/48 An item designed to electrically connect and mechanically position
An item designed to electrically connect and mechanically position the M12883/48-02S MIL-S-12883/48
your Account Upgrade 5935-01-337-3333Plug-In Electronic Components Socket5935013373333 013373333 MIL-DTL-12883
/48 M12883/48-02S MIL-S-12883/48 An item designed to electrically connect and mechanically position
Account Upgrade 5935-01-328-2713Plug-In Electronic Components Socket5935013282713 013282713 MIL-DTL-
/48 M12883/48-02S MIL-S-12883/48 An item designed to electrically connect and mechanically position
Account Upgrade 5935-01-328-2713Plug-In Electronic Components Socket5935013282713 013282713 MIL-DTL-
Restrictions 5935-01-328-2713
5935-01-328-2713 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-328-2713
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-328-2713
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BF
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Slovenia (WL01)
- Effective Date:
- 1 May 2007
- France (ZF01)
- Effective Date:
- 1 Jan 2003
Approved Sources 5935-01-328-2713
- Part Number
- Manufacturer
- Status
- M12883/48-04S
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-12883/48
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-DTL-12883
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-12883/48
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-328-2713
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 11
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 1.020 Inches Minimum And 1.030 Inches Maximum
- Body Mounting Hole Accommodation Width [ADAK]
- 1.015 Inches Maximum
- Body Style [AAQL]
- Rectangular
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.401 Inches Minimum And 1.411 Inches Maximum
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 0.620 Inches Minimum And 0.630 Inches Maximum
- Contact Material [AFRG]
- Copper

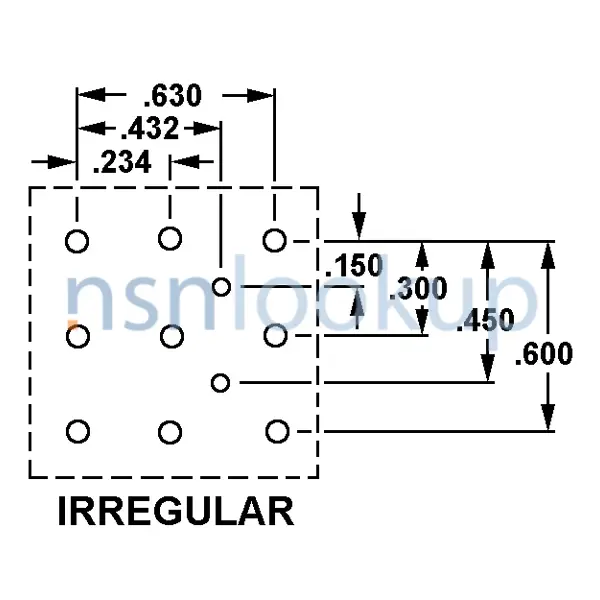

- Contact Position Arrangement Style [CRPY]
- Irregular
- Contact Maximum Current Rating In Amps [AFRC]
- 25.0
- Contact Surface Treatment [AFRH]
- Gold
- Mounting Hole Diameter [ABTB]
- 0.107 Inches Minimum And 0.117 Inches Maximum
- Mounting Hole Style [AEVB]
- Rectangular, W/Three Mounting Holes/Slots
- Mounting Method [AXGY]
- Threaded Stud
- Mounting Type For Which Designed [BCNX]
- Chassis
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.011 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Overall Height [ABKW]
- 1.250 Inches Maximum
- Overall Length [ABHP]
- 1.710 Inches Minimum And 1.730 Inches Maximum
- Overall Width [ABMK]
- 1.015 Inches Maximum
- Thread Series Designator [THSD]
- Unf
- Specification/Standard Data [ZZZK]
- 81349-Mil-S-12883/48 Government Specification
- Terminal Type And Quantity [TTQY]
- 11 Crimp
- Test Data Document [TEST]
- 81349-Mil-S-12883 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
- Thread Quantity Per Inch [CMLP]
- 32
