5935-01-319-4696
Electrical Connector Coupling Nut
5935013194696 013194696 MIL-DTL-26482 MS3186C127P
An item with internal threads and an integral seat, specifically designed to hold together mated electrical connector components. View more Electrical Connector Coupling Nut
July 2025
14
Marketplace 5935-01-319-4696
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-319-4696 5+ Documents (More...)

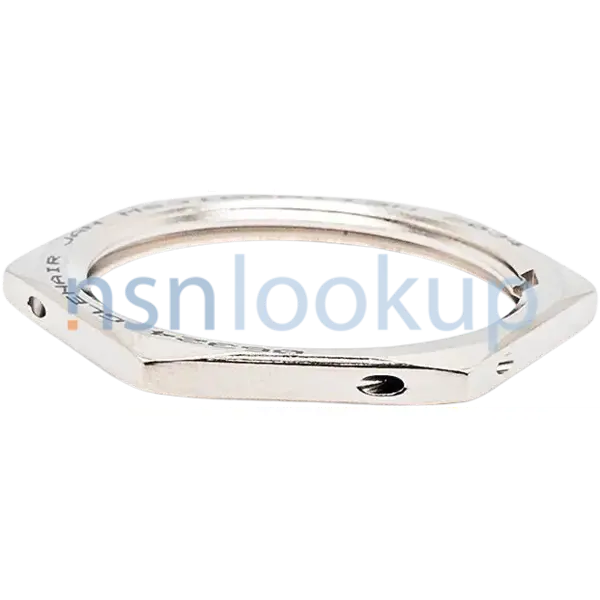

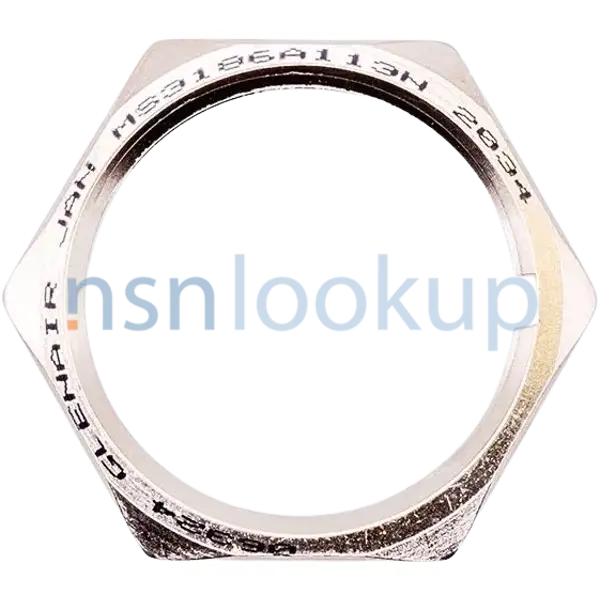

Photo 1/3 5935-01-319-4696 Photo 2/3 NSN 5935-01-319-4696 (Identification) 3/3 - - - 1.
MS3186C127P NUT,COUPLING,ELECTRICAL CONNECTOR 25 EA NS Request Quotation Updated Every Day 5935-01-319
Upgrade your Account Upgrade 5935-01-694-5137Electrical Plug Connector5935016945137 016945137 MIL-DTL-26482
your Account Upgrade 5935-01-312-5247Electrical Connector Coupling Nut5935013125247 013125247 MIL-DTL-26482
your Account Upgrade 5935-01-412-8009Electrical Connector Coupling Nut5935014128009 014128009 MIL-DTL-26482
Upgrade your Account Upgrade 5935-01-336-7731Electrical Connector Cover5935013367731 013367731 MIL-DTL-26482
Electrical Connector Coupling Nut 013194696 your Account Upgrade 5935-01-319-4696Electrical Connector
Coupling Nut5935013194696 013194696 MIL-DTL-26482 your Account Upgrade 5935-01-701-6114Electrical Connector
Electrical Connector Coupling Nut 013194696 your Account Upgrade 5935-01-319-4696Electrical Connector
Coupling Nut5935013194696 013194696 MIL-DTL-26482 your Account Upgrade 5935-01-701-6114Electrical Connector
Restrictions 5935-01-319-4696
5935-01-319-4696 is a Electrical Connector Coupling Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5935-01-319-4696
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5935-01-319-4696
- Part Number
- Manufacturer
- Status
- MS3186C127P
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-26482
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5935-01-319-4696
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Drilled Hole Diameter [AGGP]
- 0.042 Inches Minimum
- Bearing Surface Type [CRTM]
- Chamfered
- Countersink Angle [CRSQ]
- 150.0 Degrees Nominal Both Ends
- Hole Configuration Style [CRHC]
- Configuration B
- Hole Type And Quantity [ALET]
- 3 Drilled
- Material [MATT]
- Steel Comp 303 Overall
- Nominal Thread Size [CQJX]
- 2.250 Inches
- Nut Height [ADEA]
- 0.172 Inches Minimum And 0.206 Inches Maximum
- Nut Style [ACTA]
- Hexagon
- Material Document And Classification [MDCL]
- Astm A582 Assn Std Single Material Response Overall
- Thread Series [BZRR]
- Un
- Width Across Flats [ASDB]
- 2.483 Inches Minimum And 2.517 Inches Maximum
- Specification/Standard Data [ZZZK]
- 96906-Ms3186 Government Standard
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2B
- Thread Quantity Per Inch [CMLP]
- 16
DLA Procurement Analysis 5935-01-319-4696
Management Data 5935-01-319-4696
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-01-319-4696
Freight Information 5935-01-319-4696
5935-01-319-4696 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093470. A Sub NMFC of X. It has a NMFC Description of BOLTS/NUTS I/S. 5935-01-319-4696 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48940 which rates the freight between FCL and LCL. 5935-01-319-4696 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5935-01-319-4696 is not classified as a special type of cargo when transported by water. 5935-01-319-4696 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-01-319-4696
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
