5935-01-314-7594

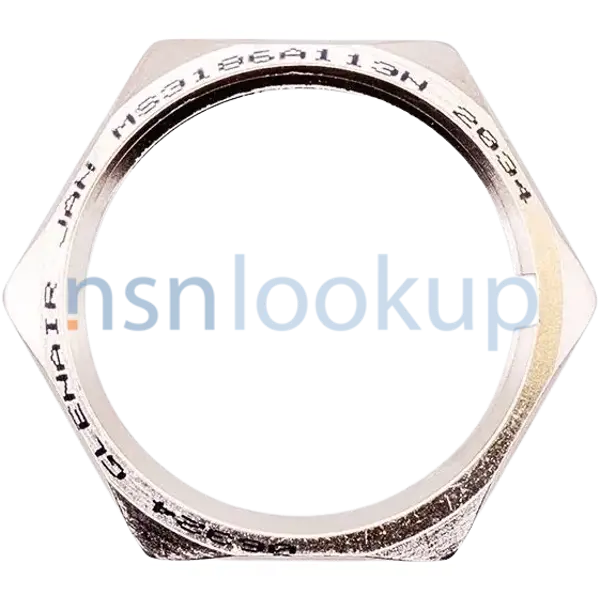

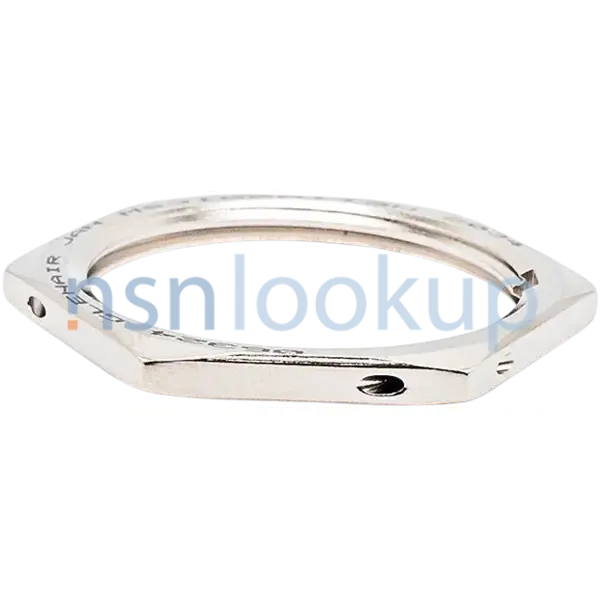

Electrical Connector Coupling Nut
5935013147594 013147594 MIL-DTL-26482 MS3186C116P MS27514-17E
An item with internal threads and an integral seat, specifically designed to hold together mated electrical connector components. View more Electrical Connector Coupling Nut
July 2025
9
Marketplace 5935-01-314-7594
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-314-7594 5+ Documents (More...)
Photo 1/3 5935-01-314-7594 Photo 2/3 NSN 5935-01-314-7594 (Identification) 3/3 - - - 1.
MS3186C116P NUT,COUPLING,ELECTRICAL CONNECTOR 4 EA NS Request Quotation Updated Every Day 5935-01-314
1475 5935-14-316-3991 5935-23-114-1168 5935-01- https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-314-7594
Electrical Connector Coupling Nut 013147594 www.nsnlookup.com /fsg-53/fsc-5310/uk 5310-99-253-0417
5935/kr 5935-37-518-8908 Electrical Connector Coupling Nut 375188908 664-7893 5935-01-167-5503 5935-01-314-7594
5935-01- https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-314-7594 Electrical Connector Coupling
Electrical Connector Coupling Nut 013147594 270414558 664-7893 5935-01-167-5503 5935-01-314-7594
www.nsnlookup.com /fsg-59/fsc-5935/uk 5935-99-824-3905 Electrical Connector Coupling Nut 998243905 MIL-DTL-26482
Electrical Connector Coupling Nut 013147594 NE Related https//www.nsnlookup.com /fsg-59/fsc https
555-1526 5935-01-486-5585 5935-01-137-7059 5935-01-165-2467 5935-01-664-7893 5935-01-167-5503 5935-01-314-7594
Restrictions 5935-01-314-7594
5935-01-314-7594 is a Electrical Connector Coupling Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5935-01-314-7594
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Air Force (FGGI)
- Effective Date:
- 14 Nov 2012
- US Air Force (FXGI)
- Effective Date:
- 1 May 2015
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Canada (ZC01)
- Effective Date:
- 1 May 1997
Approved Sources 5935-01-314-7594
- Part Number
- Manufacturer
- Status
- MS3186C116P
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-26482
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MS27514-17E
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-314-7594
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Drilled Hole Diameter [AGGP]
- 0.059 Inches Nominal
- Bearing Surface Type [CRTM]
- Chamfered
- Countersink Angle [CRSQ]
- 150.0 Degrees Nominal Nut
- Hole Configuration Style [CRHC]
- Configuration B
- Hole Type And Quantity [ALET]
- 3 Drilled
- Material [MATT]
- Steel Comp 303 Overall Or Steel Comp 303Se Overall
- Nominal Thread Size [CQJX]
- 1.250 Inches
- Nut Height [ADEA]
- 0.125 Inches Minimum And 0.142 Inches Maximum
- Nut Style [ACTA]
- Hexagon
- Material Document And Classification [MDCL]
- Astm A582 Assn Std All Material Responses Overall
- Thread Series [BZRR]
- Unef
- Width Across Flats [ASDB]
- 1.422 Inches Minimum And 1.455 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2B
- Thread Quantity Per Inch [CMLP]
- 18
Weapon Systems (WSDC) 5935-01-314-7594
DLA Procurement Analysis 5935-01-314-7594
- Last Stock Position:
- 20 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-01-314-7594
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-01-314-7594
Freight Information 5935-01-314-7594
5935-01-314-7594 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5935-01-314-7594 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5935-01-314-7594 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 5935-01-314-7594 is not classified as a special type of cargo when transported by water. 5935-01-314-7594 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
