5935-01-313-6341
Plug-In Electronic Components Socket
5935013136341 013136341 USO-314-GH-A-31
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
4
Marketplace 5935-01-313-6341
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-313-6341 2+ Documents (More...)
5935-01-313-6341 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-313-6341
/fsg-59/fsc-5935/us 5935-01-313-6341 /fsg-59/fsc-5935/us 5935-01-313-6341 /fsg-59/fsc-5935/us 5935-01
www.nsnlookup.com /fsg-59/fsc-5935/dk 5935-22-284-7813 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-313-6341
Components Socket your Account Upgrade 5935-01-313-6341Plug-In Electronic Components Socket5935013136341 013136341
Restrictions 5935-01-313-6341
5935-01-313-6341 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-01-313-6341
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-313-6341
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-313-6341
- Part Number
- Manufacturer
- Status
- USO-314-GH-A-31
- Manufacturer
- 60197 - Gbenjo Law Group The (Obsolete)
- Original Design
- Original Design
Datasheet 5935-01-313-6341
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 14
- Body Material [AAFZ]
- Plastic And Glass

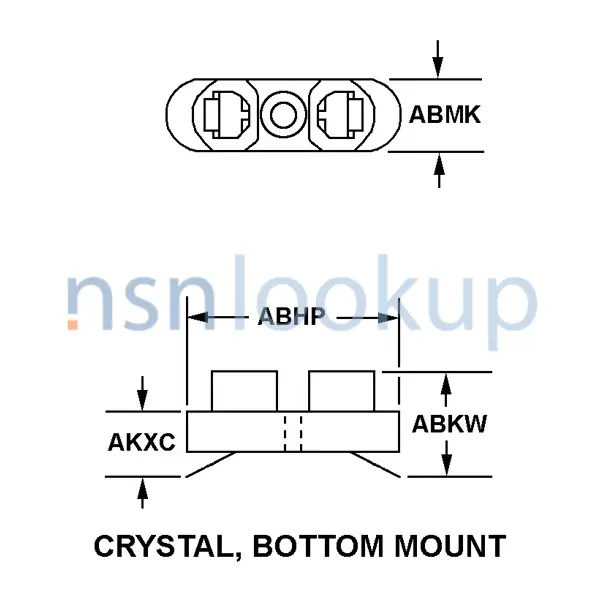

- Body Style [AAQL]
- Crystal, Bottom Mount
- Contact Material [AFRG]
- Beryllium Copper And Brass
- Contact Position Arrangement Style [CRPY]
- Dual In-Line
- Contact Surface Treatment [AFRH]
- Gold
- Overall Height [ABKW]
- 0.291 Inches Nominal
- Overall Length [ABHP]
- 0.700 Inches Nominal
- Overall Width [ABMK]
- 0.400 Inches Nominal
Similar Supply Items to 5935-01-313-6341
Freight Information 5935-01-313-6341
5935-01-313-6341 has freight characteristics managed by Germany.. 5935-01-313-6341 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
