5935-01-299-3485
Electrical Connector Guide
5935012993485 012993485 208278-1 SCD51990091-001
An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like. View more Electrical Connector Guide
January 2023
9
Marketplace 5935-01-299-3485
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-299-3485 3+ Documents (More...)
Day 5935-01-299-3485 RQST NE Restrictions 5935-01-299-3485 DEMIL Connector Guide5935012993485 012993485
Connector Guide5935012993485 012993485 208278 //www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-299-3485
/fsg-53/fsc-5340/fr
Electrical Connector Guide 5935012993485 day Upgrade your Account Upgrade 5935-01-299-3485Electrical
Connector Guide5935012993485 012993485 208278 //www.nsnlookup.com /fsg-59/fsc-5935/us 5935-01-299-3485
Electrical Connector Guide 5935012993485 /fr 5340-14-326-4933 Dust And Moisture Seal Protective
Restrictions 5935-01-299-3485
5935-01-299-3485 is a Electrical Connector Guide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-299-3485
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-299-3485
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-299-3485
- Part Number
- Manufacturer
- Status
- 208278-1
- Manufacturer
- 00779 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- SCD51990091-001
- 0C9D4 - Peraton Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-01-299-3485
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Material [MATT]
- Steel Corrosion Resisting
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Stud
- Nominal Thread Size [CQJX]
- 0.112 Inches
- Overall Length [ABHP]
- 0.875 Inches Minimum And 0.890 Inches Maximum
- Thread Series Designator [THSD]
- Unc
- Width Across Flats [ASDB]
- 0.180 Inches Nominal

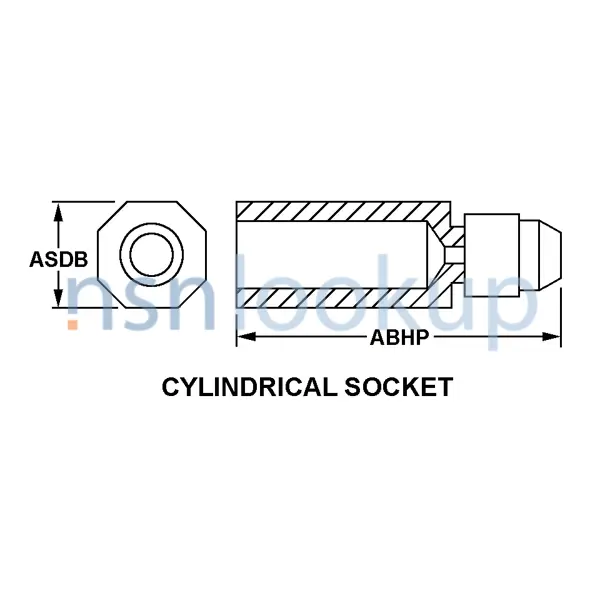

- Style Designator [STYL]
- Cylindrical Socket
- Surface Treatment [SFTT]
- Passivate
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
Similar Supply Items to 5935-01-299-3485
Freight Information 5935-01-299-3485
5935-01-299-3485 has freight characteristics managed by Canada.. 5935-01-299-3485 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
