5935-01-287-8219
Plug-In Electronic Components Socket
5935012878219 012878219 27E449
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
4
Marketplace 5935-01-287-8219
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-287-8219 1+ Documents (More...)
RQST NE Updated Every Day 5935-01-287-8219 RQST Updated Every Day 5935-01-287-8219 RQST NE Related
Documents 5935-01-287-8219 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
Restrictions 5935-01-287-8219
5935-01-287-8219 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-01-287-8219
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-287-8219
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-01-287-8219
- Part Number
- Manufacturer
- Status
- 27E449
- Manufacturer
- 77342 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-01-287-8219
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

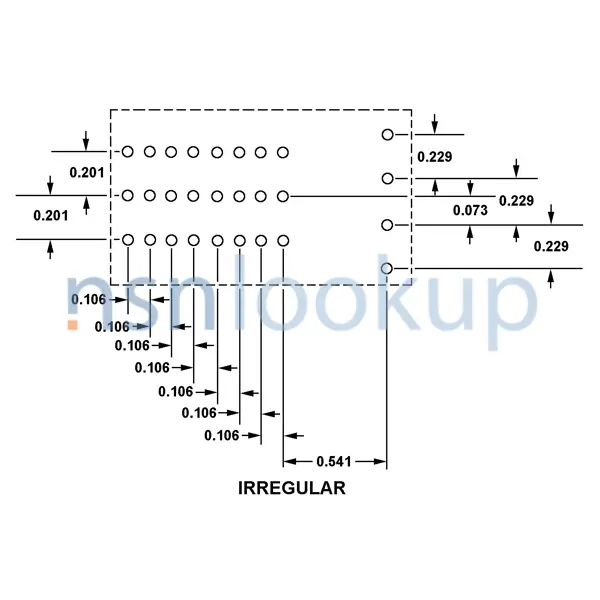

- Contact Position Arrangement Style [CRPY]
- Irregular
- Body Style [AAQL]
- Rectangular
- Overall Length [ABHP]
- 2.437 Inches Nominal
- Overall Height [ABKW]
- 0.240 Inches Nominal
- Overall Width [ABMK]
- 0.780 Inches Maximum
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Round, Body
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.147 Inches Nominal
Similar Supply Items to 5935-01-287-8219
Freight Information 5935-01-287-8219
5935-01-287-8219 has freight characteristics managed by the United Kingdom (UK).. 5935-01-287-8219 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
