5935-01-277-0743
Plug-In Electronic Components Socket
5935012770743 012770743 670-0125
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
5
Marketplace 5935-01-277-0743
Request a Quotation from participating marketplace vendors
Related Documents 5935-01-277-0743 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-01-277-0743 RQST NE Updated Every Day 5935-01-277-0743 RQST
Updated Every Day 5935-01-277-0743 RQST NE Related Documents 5935-01-277-0743 4+ Documents ( More...
Request a Quotation from participating marketplace vendors Request Restrictions 4730-21-670-0125 DLA
5935-01-277-0743 4+ Documents ( More... https//www.nsnlookup.com /fsg-47/fsc-4730/ca 4730-21-670-0125
Request a Quotation from participating marketplace vendors Request Related Documents 5815-00-670-0125
/fsg-47/fsc-4730/ca 4730-21-670-0125 https//www.nsnlookup.com /fsg-58/fsc-5815/us 5815-00-670-0125 5815006700125006700125
BUY NE FedMall Updated Every Day 1560-01-670-0125 RQST NE Updated Every Day 1560-01-670-0125 RQST Updated
Every Day 1560-01-670-0125 RQST NE Restrictions 1560-01-670-0125 DEMIL: Q | DEMILI : 3 | CRITICALITY
Restrictions 5935-01-277-0743
5935-01-277-0743 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-01-277-0743
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-01-277-0743
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
Approved Sources 5935-01-277-0743
- Part Number
- Manufacturer
- Status
- 670-0125
- Manufacturer
- 04221 - Midland-Ross Corp (Obsolete)
- Original Design
- Original Design
Datasheet 5935-01-277-0743
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

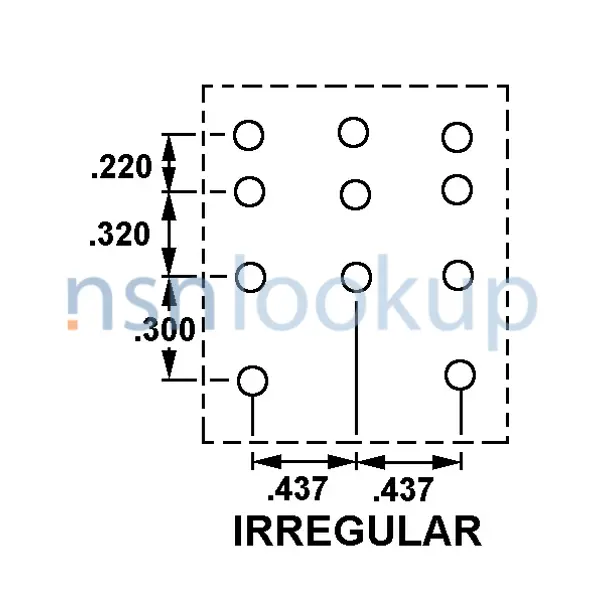

- Contact Position Arrangement Style [CRPY]
- Irregular
- Accommodated Contact Quantity [AFRL]
- 11
- Contact Maximum Current Rating In Amps [AFRC]
- 15.0
- Contact Material [AFRG]
- Any Acceptable
- Contact Surface Treatment [AFRH]
- Any Acceptable
- Body Style [AAQL]
- Top Mount W/Tabs
- Overall Length [ABHP]
- 3.250 Inches Nominal
- Overall Height [ABKW]
- 0.969 Inches Nominal
- Overall Width [ABMK]
- 1.969 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 11 Screw
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Tab
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Slot Width [ABTD]
- 0.160 Inches Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 1.440 Inches Nominal
